A model class for the Standard Model. More...
#include <StandardModel.h>

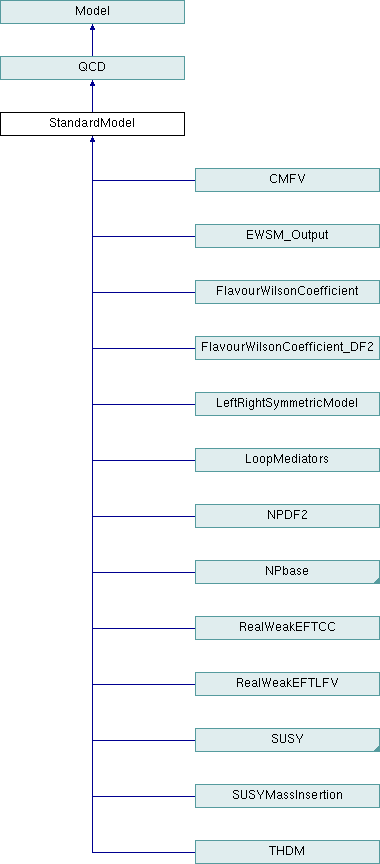

Inheritance diagram for StandardModel:A model class for the Standard Model.
This is a Model class containing parameters and functions associated with the Standard Model. This class is inherited from the QCD class, which defines parameters related to QCD.
The constructor StandardModel() initializes some of the model flags to their default values. After creating an instance of the current class, it is required to call the initialization method InitializeModel(), which allocates memory to the pointers defined in the current class. These pointers are then used in computing EW precision and flavour observables, respectively. In the Monte Carlo run, the constructor as well as the initialization method are called in InputParser::ReadParameters().
The initializations and updates of the model parameters and flags are explained below.
The model parameters of StandardModel are summarized below:
| Label | LaTeX symbol | Description |
|---|---|---|
| Mz | \(M_Z\) | The mass of the \(Z\) boson in GeV. |
| Mw_inp | \(M_W\) | The mass of the \(W\) boson in GeV. Only used if the flag MWinput is TRUE. |
| AlsMz | \(\alpha_s(M_Z)\) | The strong coupling constant at the Z-boson mass. |
| GF | \(G_\mu\) | The Fermi constant in \({\rm GeV}^{-2}\), measured through muon decays. |
| ale | \(\alpha\) | The fine-structure constant. |
| dAle5Mz | \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\) | The five-flavour hadronic contribution to the electromagnetic coupling. |
| mHl | \(m_h\) | The Higgs mass in GeV. |
| delMw | \(\delta\,M_W\) | The theoretical uncertainty in \(M_W\) in GeV, which is applicable only when EWSMApproximateFormulae::Mw() is employed for \(M_W\). See also the model flag Mw. |
| delSin2th_l | \(\delta\sin^2\theta_{\rm eff}^{\rm lept}\) | The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{\rm lept}\), which is applicable only when EWSMApproximateFormulae::sin2thetaEff_l() is employed for \(\sin^2\theta_{\rm eff}^{\rm lept}\). See also the model flag KappaZ. |
| delSin2th_q | \(\delta\sin^2\theta_{\rm eff}^{q\not = b,t}\) | The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{q\not = b,t}\), which is applicable only when EWSMApproximateFormulae::sin2thetaEff_q() is employed for \(\sin^2\theta_{\rm eff}^{q\not = b,t}\). See also the model flag KappaZ. |
| delSin2th_b | \(\delta\sin^2\theta_{\rm eff}^{b}\) | The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{b}\), which is applicable only when EWSMApproximateFormulae::sin2thetaEff_b() is employed for \(\sin^2\theta_{\rm eff}^{b}\). See also the model flag KappaZ. |
| delGammaZ | \(\delta\,\Gamma_Z\) | The theoretical uncertainty in \(\Gamma_Z\) in GeV, which is applicable only when EWSMApproximateFormulae::X_full_2_loop() is employed for \(\Gamma_Z\). See also the model flag NoApproximateGammaZ. |
| delsigma0H | \(\delta\,\sigma_{Hadron}^0\) | The theoretical uncertainty in \(\sigma_{Hadron}^0\), which is applicable only when EWSMApproximateFormulae::X_full_2_loop() is employed for \(\sigma_{Hadron}^0\). |
| delR0l | \(\delta\,R_l^0\) | The theoretical uncertainty in \(R_l^0\), which is applicable only when EWSMApproximateFormulae::X_full_2_loop() is employed for \(R_l^0\). |
| delR0c | \(\delta\,R_c^0\) | The theoretical uncertainty in \(R_c^0\), which is applicable only when EWSMApproximateFormulae::X_full_2_loop() is employed for \(R_c^0\). |
| delR0b | \(\delta\,R_b^0\) | The theoretical uncertainty in \(R_b^0\), which is applicable only when EWSMApproximateFormulae::X_full_2_loop() is employed for \(R_b^0\). |
| delGammaWlv | \(\delta\,\Gamma_W_{l\nu}\) | The theoretical uncertainty in \(\Gamma_W_{l\nu}\). RELATIVE uncertainty. |
| delGammaWqq | \(\delta\,\Gamma_W_{qq}\) | The theoretical uncertainty in \(\Gamma_W_{qq}\). RELATIVE uncertainty. |
| mneutrino_1 | \(m_{\nu_1}\) | The mass of the first-generation neutrino in GeV. |
| mneutrino_2 | \(m_{\nu_2}\) | The mass of the second-generation neutrino in GeV. |
| mneutrino_3 | \(m_{\nu_3}\) | The mass of the third-generation neutrino in GeV. |
| melectron | \(m_e\) | The electron mass in GeV. |
| mmu | \(m_\mu\) | The muon mass in GeV. |
| mtau | \(m_\tau\) | The tau mass in GeV. |
| lambda | \(\lambda\) | The CKM parameter \(\lambda\) in the Wolfenstein parameterization. |
| A | \(A\) | The CKM parameter \(A\) in the Wolfenstein parameterization. |
| rhob | \(\bar{\rho}\) | The CKM parameter \(\bar{\rho}\) in the Wolfenstein parameterization. |
| etab | \(\bar{\eta}\) | The CKM parameter \(\bar{\eta}\) in the Wolfenstein parameterization. |
| muw | \(\mu_W\) | A matching scale around the weak scale in GeV. |
The set of the model parameters are initialized and updated with the methods Init() and Update(), respectively, where the former calls the latter actually. In Update(), the methods PreUpdate() and PostUpdate() are called to run all the procedures that are need to be executed before and after the model parameters are updated. The CKM and PMNS matrices and the Yukawa matrices are recomputed in PostUpdate() with the updated parameters. Inside the Update() method, the individual model parameter is assigned with the protected member function setParameter().
The parameters delMw, delSin2th_l, delSin2th_q, delSin2th_b, delGammaZ, delsigma0H, delR0l, delR0c, delR0b, delGammaWlv, delGammaWqq represent theoretical uncertainties in the \(W\)-boson mass, the leptonic and quark effective weak mixing angles at the \(Z\)-boson mass scale, the total decay width of the \(Z\) boson, the hadronic cross section at the peak, the ratios \(R_l^0\), \(R_c^0\) and \(R_b^0\), and the \(W\)-boson partial decay widths into leptons and quarks, respectively, originating from missing higher-order corrections. The contributions from these parameters are incorporated into their two-loop approximate formulae: EWSMApproximateFormulae::Mw(), EWSMApproximateFormulae::sin2thetaEff_l(), EWSMApproximateFormulae::sin2thetaEff_q(), EWSMApproximateFormulae::sin2thetaEff_b(), EWSMApproximateFormulae::X_full_2_loop("GammaZ"), EWSMApproximateFormulae::X_full_2_loop("sigmaHadron"), EWSMApproximateFormulae::X_full_2_loop("R0_lepton"), EWSMApproximateFormulae::X_full_2_loop("R0_charm") and EWSMApproximateFormulae::X_full_2_loop("R0_bottom"). Therefore, the parameters are applicable only when the corresponding approximate formulae are employed. See also the model flags below.
The flags of StandardModel are summarized below, where the values of the boolean flags (TRUE or FALSE) are case insensitive, while those of the other flags are case sensitive. The default values of the flags are indicated in bold:
| Label | Value | Description |
|---|---|---|
| Wolfenstein | TRUE / FALSE | This flag controls the way the CKM matrix is parameterized. If set to TRUE, the CKM matrix is computed starting from the Wolfenstein parameters. If set to FALSE, the CKM matrix is computed starting from \(\vert V_{us} \vert\), \(\vert V_{cb} \vert\), \(\vert V_{ub} \vert\) and \(\gamma\). The default value is TRUE. |
| UseVud | FALSE / TRUE | This flag controls the way the CKM matrix is parameterized. If set to FALSE, with Wolfenstein FALSE, the CKM matrix is computed starting from \(\vert V_{us} \vert\), \(\vert V_{cb} \vert\), \(\vert V_{ub} \vert\) and \(\gamma\). If set to TRUE, with Wolfenstein FALSE, the CKM matrix is computed starting from \(\vert V_{ud} \vert\), \(\vert V_{cb} \vert\), \(\vert V_{ub} \vert\) and \(\gamma\). If Wolfenstein is set to TRUE, this flag has no effect. The default value is FALSE. |
| FixMuwMut | FALSE / TRUE | This flag controls the way the weak matching scale and the top quark decoupling scale are varied. If set to FALSE, the \(\mu_W\) parameter is introduced to float the matching scale independently of the top decoupling scale \(\mu_t\). If set to TRUE, the \(\mu_t\) parameter is fixed to \(\mu_W / M_W * \m_t\) Notice that in this case the \(\mu_t\) parameter defined in QCD becomes irrelevant, therefore it is advisable to fix it to a constant in the configuration file The default value is FALSE. |
| CacheInStandardModel | TRUE / FALSE | This flag controls the use of the cashing method implemented in EWSM class. The default value is TRUE. |
| CacheInEWSMcache | TRUE / FALSE | This flag controls the use of the cashing method implemented in EWSMcache class. The default value is TRUE. |
| WithoutNonUniversalVC | TRUE / FALSE | This flag controls if flavour non-universal vertex corrections are not added to the epsilon parameterization for the EW precision observables. The default value is FALSE; the non-universal corrections are taken into account. |
| NoApproximateGammaZ | TRUE / FALSE | This flag is set to true if the two-loop approximate formulae of the partial and total decay widths of the \(Z\) boson defined with the function EWSMApproximateFormulae::X_full_2_loop() are NOT employed. The default value is FALSE. |
| Mw | NORESUM / OMSI / INTERMEDIATE / OMSII / APPROXIMATEFORMULA | This flag controls the formula used in computing the \(W\)-boson mass. The default flag is APPROXIMATEFORMULA. See EWSM::Mw_SM(), EWSM::resumMw() and EWSMApproximateFormulae::Mw() for detail. |
| RhoZ | NORESUM / OMSI / INTERMEDIATE / OMSII | This flag controls the formula used in computing the \(Zf\bar{f}\) couplings \(\rho_Z^f\). The default flag is NORESUM. See EWSM::rhoZ_l_SM(), EWSM::rhoZ_q_SM() and EWSM::resumRhoZ() for detail. |
| KappaZ | NORESUM / OMSI / INTERMEDIATE / OMSII / APPROXIMATEFORMULA | This flag controls the formula used in computing the \(Zf\bar{f}\) couplings \(\kappa_Z^f\). The default flag is APPROXIMATEFORMULA. See EWSM::kappaZ_l_SM(), EWSM::kappaZ_q_SM() and EWSM::resumKappaZ() for detail. |
| MWinput | TRUE / FALSE | This auxiliary flag is used for setting the W mass as a SM input, instead of the electromagnetic constant parameter dAle5Mz. The default value is FALSE. |
| SMAux | TRUE / FALSE | This auxiliary flag is used for testing new options. The default value is FALSE. |
These flags can be set via the method setFlag() or setFlagStr(), where the former is applicable for the boolean flags, while the latter is for the other flags. The method CheckFlags() is responsible for checking whether the flags are sane. The public member functions IsFlagWithoutNonUniversalVC(), IsFlagNoApproximateGammaZ() getFlagMw(), getFlagRhoZ() and getFlagKappaZ() are used to retrieve the values of each flag.
The first two flags CacheInStandardModel and CacheInEWSMcache for the cashing methods in EWSM and EWSMcache classes are relevant to the computations of the electroweak precision observables. Those caches are effective when the \(W\)-boson mass, the decay widths of the \(Z\) boson and the \(Zf\bar{f}\) effective couplings \(\kappa_Z^f\) are calculated without using their two-loop approximate formulae.
The on-mass-shell renormalization scheme [Sirlin:1980nh], [Marciano:1980pb], [Bardin:1980fe], [Bardin:1981sv] is adopted for UV divergences, and the weak mixing angle is defined in terms of the physical masses of the gauge bosons:
\[ s_W^2 \equiv \sin^2\theta_W = 1 - \frac{M_W^2}{M_Z^2}\,, \]
and \(c_W^2=1-s_W^2\).
The Fermi constant \(G_\mu\) in \(\mu\) decay is taken as an input quantity instead of the \(W\)-boson mass, since the latter has not been measured very precisely compared to the former. The relation between \(G_\mu\) and \(M_W\) is written as
\[ G_\mu = \frac{\pi\,\alpha}{\sqrt{2} s_W^2 M_W^2} (1+\Delta r)\,, \]
where \(\Delta r\) represents radiative corrections. From this relation, the \(W\)-boson mass is calculated as
\[ M_W^2 = \frac{M_Z^2}{2} \left( 1+\sqrt{1-\frac{4\pi\alpha}{\sqrt{2}G_\mu M_Z^2}\,(1+\Delta r)}\ \right). \]
The interaction between the \(Z\) boson and the neutral current can be written in terms of the effective \(Zf\bar{f}\) couplings \(g_{V}^f\) and \(g_{A}^f\), of \(g_{R}^f\) and \(g_{L}^f\), or of \(\rho_Z^f\) and \(\kappa_Z^f\):
\begin{eqnarray} \mathcal{L} &=& \frac{e}{2 s_W c_W}\, Z_\mu \sum_f \bar{f} \left( g_{V}^f\gamma_\mu - g_{A}^f \gamma_\mu\gamma_5 \right)\, f\,, \\ &=& \frac{e}{2s_W c_W}\, Z_\mu \sum_f \bar{f} \left[ g_{R}^f \gamma_\mu (1 + \gamma_5) + g_{L}^f \gamma_\mu (1 - \gamma_5) \right]\, f\,, \\ &=& \frac{e}{2 s_W c_W}\sqrt{\rho_Z^f}\, Z_\mu \sum_f \bar{f} \left[( I_3^f - 2Q_f\kappa_Z^f s_W^2)\gamma^\mu - I_3^f\gamma^\mu\gamma_5\right]\,f\,, \end{eqnarray}
where \(\rho_Z^f\) and \(\kappa_Z^f\) are related to \(g_{V}^f\) and \(g_{A}^f\) as the relations:
\begin{eqnarray} g_V^f &=& \sqrt{\rho_Z^f} I_3^f (1 - 4|Q_f|\kappa_Z^fs_W^2) = \sqrt{\rho_Z^f} (I_3^f - 2Q_f\kappa_Z^fs_W^2)\,, \qquad g_A^f &=& \sqrt{\rho_Z^f} I_3^f\,, \end{eqnarray}
and
\begin{eqnarray} \rho_Z^f &=& \left( \frac{g_A^f}{I_3^f} \right)^2, \qquad \kappa_Z^f &=& \frac{1}{4|Q_f|s_W^2} \left( 1 - \frac{g_V^{f}}{g_A^{f}}\right). \end{eqnarray}
The current class handles the following quantities:
Moreover, the functions Mzbar(), MwbarFromMw(), MwFromMwbar() and DeltaRbar_SM() can be used for the quantities in the complex-pole/fixed-width scheme.
The formulae used for the \(W\)-boson mass \(M_W\) and the effective couplings \(\rho_Z^f\) and \(\kappa_Z^f\) are controlled with the model flags Mw, RhoZ and KappaZ of StandardModel. For each flag, the available schemes are as follows:
The scheme APPROXIMATEFORMULA provides the most accurate SM predictions for \(M_W\) and \(\kappa_Z^f\), while the approximate two-loop formula is not available for \(\rho_Z^f\).
See resumMw(), resumRhoZ() and resumKappaZ() for details on the other schemes.
This class contains caching methods for the following functions: DeltaAlphaLepton(), DeltaAlpha(), Mw_SM(), GammaW_SM(), rhoZ_l_SM(), rhoZ_q_SM(), kappaZ_l_SM() and kappaZ_q_SM(), to improve the performance of the Monte Carlo run. The caching methods are implemented with the function checkSMparams().
The use of the caching methods can be controlled with the model flag CacheInStandardModel of StandardModel.
Definition at line 521 of file StandardModel.h.
Public Types | |
| enum | LEP2RCs { Weak = 0 , WeakBox , ISR , QEDFSR , QCDFSR , NUMofLEP2RCs } |
| enum | orders_EW { EW1 = 0 , EW1QCD1 , EW1QCD2 , EW2 , EW2QCD1 , EW3 , orders_EW_size } |
| An enumerated type representing perturbative orders of radiative corrections to EW precision observables. More... | |
| Public Types inherited from QCD | |
| enum | lepton { NEUTRINO_1 , ELECTRON , NEUTRINO_2 , MU , NEUTRINO_3 , TAU , NOLEPTON } |
| An enum type for leptons. More... | |
| enum | meson { P_0 , P_P , K_0 , K_P , D_0 , D_P , D_S , B_D , B_P , B_S , B_C , PHI , K_star , K_star_P , K_S , D_star_P , RHO , RHO_P , OMEGA , MESON_END } |
| An enum type for mesons. More... | |
| enum | quark { UP , DOWN , CHARM , STRANGE , TOP , BOTTOM } |
| An enum type for quarks. More... | |
Public Member Functions | |
| virtual const double | A_f (const Particle f) const |
| The left-right asymmetry in \(e^+e^-\to Z\to \ell \bar{\ell}\) at the \(Z\)-pole, \(\mathcal{A}_\ell\). More... | |
| virtual const double | AFB (const Particle f) const |
| gslpp::complex | AH_f (const double tau) const |
| Fermionic loop function entering in the calculation of the effective \(Hgg\) and \(H\gamma\gamma\) couplings. More... | |
| gslpp::complex | AH_W (const double tau) const |
| W loop function entering in the calculation of the effective \(H\gamma\gamma\) coupling. More... | |
| gslpp::complex | AHZga_f (const double tau, const double lambda) const |
| Fermionic loop function entering in the calculation of the effective \(HZ\gamma\) coupling. More... | |
| gslpp::complex | AHZga_W (const double tau, const double lambda) const |
| W loop function entering in the calculation of the effective \(HZ\gamma\) coupling. More... | |
| const double | Ale (double mu, orders order, bool Nf_thr=true) const |
| The running electromagnetic coupling \(\alpha_e(\mu)\) in the \(\overline{MS}\) scheme. More... | |
| const double | ale_OS (const double mu, orders order=FULLNLO) const |
| The running electromagnetic coupling \(\alpha(\mu)\) in the on-shell scheme. More... | |
| virtual const double | alphaMz () const |
| The electromagnetic coupling at the \(Z\)-mass scale, \(\alpha(M_Z^2)=\alpha/(1-\Delta\alpha(M_Z^2))\). More... | |
| virtual const double | alrmoller (const double q2, const double y) const |
| The computation of the parity violating asymmetry in Moller scattering. More... | |
| const double | Als (const double mu, const int Nf_in, const orders order=FULLNLO) const |
| Computes the running strong coupling \(\alpha_s(\mu)\) with \(N_f\) active flavours in the \(\overline{\mathrm{MS}}\) scheme. In the cases of LO, NLO and FULLNLO, the coupling is computed with AlsWithInit(). On the other hand, in the cases of NNLO and FULLNNLO, the coupling is computed with AlsWithLambda(). More... | |
| const double | Als (const double mu, const orders order, const bool Nf_thr, const bool qed_flag) const |
| The running QCD coupling \(\alpha(\mu)\) in the \(\overline{MS}\) scheme including QED corrections. More... | |
| const double | Als (const double mu, const orders order=FULLNLO, const bool Nf_thr=true) const |
| const double | Alstilde5 (const double mu) const |
| The value of \(\frac{\alpha_s^{\mathrm{FULLNLO}}}{4\pi}\) at any scale \(\mu\) with the number of flavours \(n_f = 4\) and full EW corrections. More... | |
| virtual const double | amuon () const |
| The computation of the anomalous magnetic moment of the muon \(a_\mu=(g_\mu-2)/2\). More... | |
| const double | Beta_e (int nm, unsigned int nf) const |
| QED beta function coefficients - eq. (36) hep-ph/0512066. More... | |
| const double | Beta_s (int nm, unsigned int nf) const |
| QCD beta function coefficients including QED corrections - eq. (36) hep-ph/0512066. More... | |
| virtual const double | BrHtobb () const |
| The Br \((H\to b \bar{b})\) in the Standard Model. More... | |
| virtual const double | BrHtocc () const |
| The Br \((H\to c \bar{c})\) in the Standard Model. More... | |
| virtual const double | BrHtogaga () const |
| The Br \((H\to \gamma \gamma)\) in the Standard Model. More... | |
| virtual const double | BrHtogg () const |
| The Br \(\(H\to gg)\) in the Standard Model. More... | |
| virtual const double | BrHtomumu () const |
| The Br \((H\to \mu^+ \mu^-)\) in the Standard Model. More... | |
| virtual const double | BrHtoss () const |
| The Br \((H\to s \bar{s})\) in the Standard Model. More... | |
| virtual const double | BrHtotautau () const |
| The Br \((H\to \tau^+ \tau^-)\) in the Standard Model. More... | |
| virtual const double | BrHtoWWstar () const |
| The Br \((H\to W W^*)\) in the Standard Model. More... | |
| virtual const double | BrHtoZga () const |
| The Br \((H\to Z \gamma)\) in the Standard Model. More... | |
| virtual const double | BrHtoZZstar () const |
| The Br \((H\to Z Z^*)\) in the Standard Model. More... | |
| virtual const double | BrW (const Particle fi, const Particle fj) const |
| The branching ratio of the \(W\) boson decaying into a SM fermion pair, \(Br(W\to f_i f_j)\). More... | |
| const double | c02 () const |
| The square of the cosine of the weak mixing angle \(c_0^2\) defined without weak radiative corrections. More... | |
| virtual bool | CheckFlags () const |
| A method to check the sanity of the set of model flags. More... | |
| virtual bool | CheckParameters (const std::map< std::string, double > &DPars) |
| A method to check if all the mandatory parameters for StandardModel have been provided in model initialization. More... | |
| bool | checkSMparamsForEWPO () |
| A method to check whether the parameters relevant to the EWPO are updated. More... | |
| const double | computeBrHto4f () const |
| The Br \((H\to 4f)\) in the Standard Model. More... | |
| const double | computeBrHto4l2 () const |
| The Br \((H\to 4l)\) \(l=e,\mu\) in the Standard Model. More... | |
| const double | computeBrHto4l3 () const |
| The Br \((H\to 4l)\) \(l=e,\mu,\tau\) in the Standard Model. More... | |
| const double | computeBrHto4q () const |
| The Br \((H\to 4q)\) in the Standard Model. More... | |
| const double | computeBrHto4v () const |
| The Br \((H\to 4\nu)\) in the Standard Model. More... | |
| const double | computeBrHtobb () const |
| The Br \((H\to bb)\) in the Standard Model. More... | |
| const double | computeBrHtocc () const |
| The Br \((H\to cc)\) in the Standard Model. More... | |
| const double | computeBrHtoevmuv () const |
| The Br \((H\to e \nu \mu \nu)\) in the Standard Model. More... | |
| const double | computeBrHtogaga () const |
| The Br \((H\to\gamma\gamma)\) in the Standard Model. More... | |
| const double | computeBrHtogg () const |
| The Br \((H\to gg)\) in the Standard Model. More... | |
| const double | computeBrHtollvv2 () const |
| The Br \((H\to l^+ l^- \nu \nu)\) \(l=e,\mu\) in the Standard Model. More... | |
| const double | computeBrHtollvv3 () const |
| The Br \((H\to l^+ l^- \nu \nu)\) \(l=e,\mu,\tau\) in the Standard Model. More... | |
| const double | computeBrHtomumu () const |
| The Br \((H\to \mu\mu)\) in the Standard Model. More... | |
| const double | computeBrHtoss () const |
| The Br \((H\to ss)\) in the Standard Model. More... | |
| const double | computeBrHtotautau () const |
| The Br \((H\to \tau\tau)\) in the Standard Model. More... | |
| const double | computeBrHtoWW () const |
| The Br \((H\to WW)\) in the Standard Model. More... | |
| const double | computeBrHtoZga () const |
| The Br \((H\to Z\gamma)\) in the Standard Model. More... | |
| const double | computeBrHtoZZ () const |
| The Br \((H\to ZZ)\) in the Standard Model. More... | |
| void | ComputeDeltaR_rem (const double Mw_i, double DeltaR_rem[orders_EW_size]) const |
| A method to collect \(\Delta r_{\mathrm{rem}}\) computed via subclasses. More... | |
| void | ComputeDeltaRho (const double Mw_i, double DeltaRho[orders_EW_size]) const |
| A method to collect \(\Delta\rho\) computed via subclasses. More... | |
| const double | computeGammaHgaga_tt () const |
| The top loop contribution to \(H\to\gamma\gamma\) in the Standard Model. More... | |
| const double | computeGammaHgaga_tW () const |
| The mixed \(t-W\) loop contribution to \(H\to\gamma\gamma\) in the Standard Model. More... | |
| const double | computeGammaHgaga_WW () const |
| The \(W\) loop contribution to \(H\to\gamma\gamma\) in the Standard Model. More... | |
| const double | computeGammaHgg_bb () const |
| The bottom loop contribution to \(H\to gg\) in the Standard Model. More... | |
| const double | computeGammaHgg_tb () const |
| The top-bottom interference contribution to \(H\to gg\) in the Standard Model. More... | |
| const double | computeGammaHgg_tt () const |
| The top loop contribution to \(H\to gg\) in the Standard Model. More... | |
| const double | computeGammaHTotal () const |
| The Higgs total width in the Standard Model. More... | |
| const double | computeGammaHZga_tt () const |
| The top loop contribution to \(H\to Z\gamma\) in the Standard Model. More... | |
| const double | computeGammaHZga_tW () const |
| The mixed \(t-W\) loop contribution to \(H\to Z\gamma\) in the Standard Model. More... | |
| const double | computeGammaHZga_WW () const |
| The \(W\) loop contribution to \(H\to Z\gamma\) in the Standard Model. Currently it returns the value of tab 41 in ref. [Heinemeyer:2013tqa]. More... | |
| const double | computeSigmabbH (const double sqrt_s) const |
| The bbH production cross section in the Standard Model. More... | |
| const double | computeSigmaggH (const double sqrt_s) const |
| The ggH cross section in the Standard Model. More... | |
| const double | computeSigmaggH_bb (const double sqrt_s) const |
| The square of the bottom-quark contribution to the ggH cross section in the Standard Model. More... | |
| const double | computeSigmaggH_tb (const double sqrt_s) const |
| The top-bottom interference contribution to the ggH cross section in the Standard Model. More... | |
| const double | computeSigmaggH_tt (const double sqrt_s) const |
| The square of the top-quark contribution to the ggH cross section in the Standard Model. More... | |
| const double | computeSigmatHq (const double sqrt_s) const |
| The tHq production cross section in the Standard Model. More... | |
| const double | computeSigmattH (const double sqrt_s) const |
| The ttH production cross section in the Standard Model. More... | |
| const double | computeSigmaVBF (const double sqrt_s) const |
| The VBF cross section in the Standard Model. More... | |
| const double | computeSigmaWF (const double sqrt_s) const |
| The W fusion contribution \(\sigma_{WF}\) to higgs-production cross section in the Standard Model. More... | |
| const double | computeSigmaWH (const double sqrt_s) const |
| The WH production cross section in the Standard Model. More... | |
| const double | computeSigmaZF (const double sqrt_s) const |
| The Z fusion contribution \(\sigma_{ZF}\) to higgs-production cross section in the Standard Model. More... | |
| const double | computeSigmaZH (const double sqrt_s) const |
| The ZH production cross section in the Standard Model. More... | |
| const double | computeSigmaZWF (const double sqrt_s) const |
| The Z W interference fusion contribution \(\sigma_{ZWF}\) to higgs-production cross section in the Standard Model. More... | |
| virtual const double | cW2 () const |
| virtual const double | cW2 (const double Mw_i) const |
| The square of the cosine of the weak mixing angle in the on-shell scheme, denoted as \(c_W^2\). More... | |
| virtual const double | Dalpha5hMz () const |
| The 5-quark contribution to the running of the em constant to the \(Z\) pole. \(\Delta\alpha_{had}^{(5)}(M_Z)\). More... | |
| const double | DeltaAlpha () const |
| The total corrections to the electromagnetic coupling \(\alpha\) at the \(Z\)-mass scale, denoted as \(\Delta\alpha(M_Z^2)\). More... | |
| const double | DeltaAlphaL5q () const |
| The sum of the leptonic and the five-flavour hadronic corrections to the electromagnetic coupling \(\alpha\) at the \(Z\)-mass scale, denoted as \(\Delta\alpha^{\ell+5q}(M_Z^2)\). More... | |
| const double | DeltaAlphaLepton (const double s) const |
| Leptonic contribution to the electromagnetic coupling \(\alpha\), denoted as \(\Delta\alpha_{\mathrm{lept}}(s)\). More... | |
| const double | DeltaAlphaTop (const double s) const |
| Top-quark contribution to the electromagnetic coupling \(\alpha\), denoted as \(\Delta\alpha_{\mathrm{top}}(s)\). More... | |
| virtual const gslpp::complex | deltaKappaZ_f (const Particle f) const |
| Flavour non-universal vertex corrections to \(\kappa_Z^l\), denoted by \(\Delta\kappa_Z^l\). More... | |
| virtual const double | DeltaR () const |
| The SM prediction for \(\Delta r\) derived from that for the \(W\) boson mass. More... | |
| virtual const double | DeltaRbar () const |
| The SM prediction for \(\Delta \overline{r}\) derived from that for the \(W\)-boson mass. More... | |
| virtual const gslpp::complex | deltaRhoZ_f (const Particle f) const |
| Flavour non-universal vertex corrections to \(\rho_Z^l\), denoted by \(\Delta\rho_Z^l\). More... | |
| virtual const double | eeffAFBbottom (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBcharm (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBe (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBetsub (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBmu (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBstrange (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffAFBtau (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRbottom (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRcharm (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRelectron (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRelectrontsub (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRmuon (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRstrange (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffRtau (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigma (const Particle f, const double pol_e, const double pol_p, const double s, const double cosmin, const double cosmax) const |
| virtual const double | eeffsigmaBottom (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaCharm (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaE (const double pol_e, const double pol_p, const double s) const |
| const double | eeffsigmaEbin (const double pol_e, const double pol_p, const double s, const double cosmin, const double cosmax) const |
| virtual const double | eeffsigmaEtsub (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaHadron (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaMu (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaStrange (const double pol_e, const double pol_p, const double s) const |
| virtual const double | eeffsigmaTau (const double pol_e, const double pol_p, const double s) const |
| virtual const double | epsilon1 () const |
| The SM contribution to the epsilon parameter \(\varepsilon_1\). More... | |
| virtual const double | epsilon2 () const |
| The SM contribution to the epsilon parameter \(\varepsilon_2\). More... | |
| virtual const double | epsilon3 () const |
| The SM contribution to the epsilon parameter \(\varepsilon_3\). More... | |
| virtual const double | epsilonb () const |
| The SM contribution to the epsilon parameter \(\varepsilon_b\). More... | |
| gslpp::complex | f_triangle (const double tau) const |
| Loop function entering in the calculation of the effective \(Hgg\) and \(H\gamma\gamma\) couplings. More... | |
| gslpp::complex | g_triangle (const double tau) const |
| Loop function entering in the calculation of the effective \(HZ\gamma\) coupling. More... | |
| virtual const gslpp::complex | gA_f (const Particle f) const |
| The effective leptonic neutral-current axial-vector coupling \(g_A^l\) in the SM. More... | |
| virtual const double | Gamma_had () const |
| The hadronic decay width of the \(Z\) boson, \(\Gamma_{h}\). More... | |
| virtual const double | Gamma_inv () const |
| The invisible partial decay width of the \(Z\) boson, \(\Gamma_{\mathrm{inv}}\). More... | |
| virtual const double | Gamma_muon () const |
| The computation of the muon decay. More... | |
| virtual const double | Gamma_tau_l_nunu (const Particle l) const |
| The computation of the leptonic tau decays. More... | |
| virtual const double | Gamma_Z () const |
| The total decay width of the \(Z\) boson, \(\Gamma_Z\). More... | |
| virtual const double | GammaHtobb () const |
| The \(\Gamma(H\to b \bar{b})\) in the Standard Model. More... | |
| virtual const double | GammaHtocc () const |
| The \(\Gamma(H\to c \bar{c})\) in the Standard Model. More... | |
| virtual const double | GammaHtogaga () const |
| The \(\Gamma(H\to \gamma \gamma)\) in the Standard Model. More... | |
| virtual const double | GammaHtogg () const |
| The \(\Gamma(H\to gg)\) in the Standard Model. More... | |
| virtual const double | GammaHtomumu () const |
| The \(\Gamma(H\to \mu^+ \mu^-)\) in the Standard Model. More... | |
| virtual const double | GammaHtoss () const |
| The \(\Gamma(H\to s \bar{s})\) in the Standard Model. More... | |
| virtual const double | GammaHTot () const |
| The total Higgs width \(\Gamma(H)\) in the Standard Model. More... | |
| virtual const double | GammaHtotautau () const |
| The \(\Gamma(H\to \tau^+ \tau^-)\) in the Standard Model. More... | |
| virtual const double | GammaHtoWWstar () const |
| The \(\Gamma(H\to W W^*)\) in the Standard Model. More... | |
| virtual const double | GammaHtoZga () const |
| The \(\Gamma(H\to Z \gamma)\) in the Standard Model. More... | |
| virtual const double | GammaHtoZZstar () const |
| The \(\Gamma(H\to Z Z^*)\) in the Standard Model. More... | |
| virtual const double | GammaW () const |
| The total width of the \(W\) boson, \(\Gamma_W\). More... | |
| virtual const double | GammaW (const Particle fi, const Particle fj) const |
| A partial decay width of the \(W\) boson decay into a SM fermion pair. More... | |
| virtual const double | GammaZ (const Particle f) const |
| The \(Z\to \ell\bar{\ell}\) partial decay width, \(\Gamma_\ell\). More... | |
| virtual const double | gAnue () const |
| The effective (muon) neutrino-electron axial-vector coupling: gAnue. More... | |
| const double | getAle () const |
| A get method to retrieve the fine-structure constant \(\alpha\). More... | |
| const double | getAlsMz () const |
| A get method to access the value of \(\alpha_s(M_Z)\). More... | |
| virtual const double | getCBd () const |
| The ratio of the absolute value of the $B_d$ mixing amplitude over the Standard Model value. More... | |
| virtual const double | getCBs () const |
| The ratio of the absolute value of the $B_s$ mixing amplitude over the Standard Model value. More... | |
| virtual const double | getCCC1 () const |
| A virtual implementation for the RealWeakEFTCC class. More... | |
| virtual const double | getCCC2 () const |
| A virtual implementation for the RealWeakEFTCC class. More... | |
| virtual const double | getCCC3 () const |
| A virtual implementation for the RealWeakEFTCC class. More... | |
| virtual const double | getCCC4 () const |
| A virtual implementation for the RealWeakEFTCC class. More... | |
| virtual const double | getCCC5 () const |
| A virtual implementation for the RealWeakEFTCC class. More... | |
| virtual const double | getCDMK () const |
| The ratio of the real part of the $K$ mixing amplitude over the Standard Model value. More... | |
| virtual const double | getCepsK () const |
| The ratio of the imaginary part of the $K$ mixing amplitude over the Standard Model value. More... | |
| const CKM & | getCKM () const |
| A get method to retrieve the member object of type CKM. More... | |
| const double | getDAle5Mz () const |
| A get method to retrieve the five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\). More... | |
| const double | getDelGammaWlv () const |
| A get method to retrieve the theoretical uncertainty in \(\Gamma_W_{l\nu}\), denoted as \(\delta\,\Gamma_W_{l\nu}\). More... | |
| const double | getDelGammaWqq () const |
| A get method to retrieve the theoretical uncertainty in \(\Gamma_W_{qq}\), denoted as \(\delta\,\Gamma_W_{qq}\). More... | |
| const double | getDelGammaZ () const |
| A get method to retrieve the theoretical uncertainty in \(\Gamma_Z\), denoted as \(\delta\,\Gamma_Z\). More... | |
| const double | getDelMw () const |
| A get method to retrieve the theoretical uncertainty in \(M_W\), denoted as \(\delta\,M_W\). More... | |
| const double | getDelR0b () const |
| A get method to retrieve the theoretical uncertainty in \(R_b^0\), denoted as \(\delta\,R_b^0\). More... | |
| const double | getDelR0c () const |
| A get method to retrieve the theoretical uncertainty in \(R_c^0\), denoted as \(\delta\,R_c^0\). More... | |
| const double | getDelR0l () const |
| A get method to retrieve the theoretical uncertainty in \(R_l^0\), denoted as \(\delta\,R_l^0\). More... | |
| const double | getDelSigma0H () const |
| A get method to retrieve the theoretical uncertainty in \(\sigma_{Hadron}^0\), denoted as \(\delta\,\sigma_{Hadron}^0\). More... | |
| const double | getDelSin2th_b () const |
| A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{b}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{b}\). More... | |
| const double | getDelSin2th_l () const |
| A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{\rm lept}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{\rm lept}\). More... | |
| const double | getDelSin2th_q () const |
| A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{q\not = b,t}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{q\not = b,t}\). More... | |
| const std::string | getFlagKappaZ () const |
| A method to retrieve the model flag KappaZ. More... | |
| const std::string | getFlagMw () const |
| A method to retrieve the model flag Mw. More... | |
| const std::string | getFlagRhoZ () const |
| A method to retrieve the model flag RhoZ. More... | |
| const Flavour & | getFlavour () const |
| const double | getGF () const |
| A get method to retrieve the Fermi constant \(G_\mu\). More... | |
| const int | getIterationNo () const |
| const Particle & | getLeptons (const QCD::lepton p) const |
| A get method to retrieve the member object of a lepton. More... | |
| virtual StandardModelMatching & | getMatching () const |
| A get method to access the member reference of type StandardModelMatching. More... | |
| virtual const double | getMHl () const |
| A get method to retrieve the Higgs mass \(m_h\). More... | |
| virtual const double | getmq (const QCD::quark q, const double mu) const |
| The MSbar running quark mass computed at NLO. More... | |
| const double | getMuw () const |
| A get method to retrieve the matching scale \(\mu_W\) around the weak scale. More... | |
| const double | getMw () const |
| A get method to access the input value of the mass of the \(W\) boson \(M_W\). More... | |
| EWSMApproximateFormulae * | getMyApproximateFormulae () const |
| A get method to retrieve the member pointer of type EWSMApproximateFormulae. More... | |
| EWSMcache * | getMyEWSMcache () const |
| A get method to retrieve the member pointer of type EWSMcache. More... | |
| LeptonFlavour * | getMyLeptonFlavour () const |
| EWSMOneLoopEW * | getMyOneLoopEW () const |
| A get method to retrieve the member pointer of type EWSMOneLoopEW,. More... | |
| EWSMThreeLoopEW * | getMyThreeLoopEW () const |
| EWSMThreeLoopEW2QCD * | getMyThreeLoopEW2QCD () const |
| EWSMThreeLoopQCD * | getMyThreeLoopQCD () const |
| EWSMTwoFermionsLEP2 * | getMyTwoFermionsLEP2 () const |
| A get method to retrieve the member pointer of type EWSMTwoFermionsLEP2. More... | |
| EWSMTwoLoopEW * | getMyTwoLoopEW () const |
| EWSMTwoLoopQCD * | getMyTwoLoopQCD () const |
| const double | getMz () const |
| A get method to access the mass of the \(Z\) boson \(M_Z\). More... | |
| virtual const double | getPhiBd () const |
| Half the relative phase of the $B_d$ mixing amplitude w.r.t. the Standard Model one. More... | |
| virtual const double | getPhiBs () const |
| Half the relative phase of the $B_s$ mixing amplitude w.r.t. the Standard Model one. More... | |
| virtual const StandardModel & | getTrueSM () const |
| const gslpp::matrix< gslpp::complex > | getUPMNS () const |
| A get method to retrieve the object of the PMNS matrix. More... | |
| const gslpp::matrix< gslpp::complex > | getVCKM () const |
| A get method to retrieve the CKM matrix. More... | |
| const gslpp::matrix< gslpp::complex > & | getYd () const |
| A get method to retrieve the Yukawa matrix of the down-type quarks, \(Y_d\). More... | |
| const gslpp::matrix< gslpp::complex > & | getYe () const |
| A get method to retrieve the Yukawa matrix of the charged leptons, \(Y_e\). More... | |
| const gslpp::matrix< gslpp::complex > & | getYn () const |
| A get method to retrieve the Yukawa matrix of the neutrinos, \(Y_\nu\). More... | |
| const gslpp::matrix< gslpp::complex > & | getYu () const |
| A get method to retrieve the Yukawa matrix of the up-type quarks, \(Y_u\). More... | |
| virtual const double | gLnuN2 () const |
| The effective neutrino nucleon LH coupling: gLnuN2. More... | |
| virtual const double | gRnuN2 () const |
| The effective neutrino nucleon RH coupling: gRnuN2. More... | |
| virtual const gslpp::complex | gV_f (const Particle f) const |
| The effective leptonic neutral-current vector coupling \(g_V^l\) in the SM. More... | |
| virtual const double | gVnue () const |
| The effective (muon) neutrino-electron vector coupling: gVnue. More... | |
| gslpp::complex | I_triangle_1 (const double tau, const double lambda) const |
| Loop function entering in the calculation of the effective \(HZ\gamma\) coupling. More... | |
| gslpp::complex | I_triangle_2 (const double tau, const double lambda) const |
| Loop function entering in the calculation of the effective \(HZ\gamma\) coupling. More... | |
| virtual bool | Init (const std::map< std::string, double > &DPars) |
| A method to initialize the model parameters. More... | |
| virtual bool | InitializeModel () |
| A method to initialize the model. More... | |
| const double | intMLL2eeeeus2 (const double s, const double t0, const double t1) const |
| const double | intMLR2eeeets2 (const double s, const double t0, const double t1) const |
| const double | intMLRtilde2eeeest2 (const double s, const double t0, const double t1) const |
| const double | intMRR2eeeeus2 (const double s, const double t0, const double t1) const |
| const bool | IsFlagNoApproximateGammaZ () const |
| A method to retrieve the model flag NoApproximateGammaZ. More... | |
| const bool | IsFlagWithoutNonUniversalVC () const |
| A method to retrieve the model flag WithoutNonUniversalVC. More... | |
| const bool | isSMSuccess () const |
| A get method to retrieve the success status of the Standard Model update and matching. More... | |
| virtual const gslpp::complex | kappaZ_f (const Particle f) const |
| The effective leptonic neutral-current coupling \(\kappa_Z^l\) in the SM. More... | |
| virtual const double | LEP2AFBbottom (const double s) const |
| virtual const double | LEP2AFBcharm (const double s) const |
| virtual const double | LEP2AFBe (const double s) const |
| virtual const double | LEP2AFBmu (const double s) const |
| virtual const double | LEP2AFBtau (const double s) const |
| virtual const double | LEP2dsigmadcosBinE (const double s, const double cos, const double cosmin, const double cosmax) const |
| virtual const double | LEP2dsigmadcosBinMu (const double s, const double cos, const double cosmin, const double cosmax) const |
| virtual const double | LEP2dsigmadcosBinTau (const double s, const double cos, const double cosmin, const double cosmax) const |
| virtual const double | LEP2dsigmadcosE (const double s, const double cos) const |
| virtual const double | LEP2dsigmadcosMu (const double s, const double cos) const |
| virtual const double | LEP2dsigmadcosTau (const double s, const double cos) const |
| virtual const double | LEP2Rbottom (const double s) const |
| virtual const double | LEP2Rcharm (const double s) const |
| virtual const double | LEP2sigmaBottom (const double s) const |
| virtual const double | LEP2sigmaCharm (const double s) const |
| virtual const double | LEP2sigmaE (const double s) const |
| virtual const double | LEP2sigmaHadron (const double s) const |
| virtual const double | LEP2sigmaMu (const double s) const |
| virtual const double | LEP2sigmaTau (const double s) const |
| const double | MLL2eeff (const Particle f, const double s, const double t) const |
| const double | MLR2eeff (const Particle f, const double s) const |
| const double | MRL2eeff (const Particle f, const double s) const |
| const double | MRR2eeff (const Particle f, const double s, const double t) const |
| virtual const double | Mw () const |
| The SM prediction for the \(W\)-boson mass in the on-shell scheme, \(M_{W,\mathrm{SM}}\). More... | |
| const double | Mw_tree () const |
| The tree-level mass of the \(W\) boson, \(M_W^{\mathrm{tree}}\). More... | |
| const double | MwbarFromMw (const double Mw) const |
| A method to convert the \(W\)-boson mass in the experimental/running-width scheme to that in the complex-pole/fixed-width scheme. More... | |
| const double | MwFromMwbar (const double Mwbar) const |
| A method to convert the \(W\)-boson mass in the complex-pole/fixed-width scheme to that in the experimental/running-width scheme. More... | |
| double | Mzbar () const |
| The \(Z\)-boson mass \(\overline{M}_Z\) in the complex-pole/fixed-width scheme. More... | |
| virtual const double | N_nu () const |
| The number of neutrinos obtained indirectly from the measurements at the Z pole, \(N_{\nu}\). More... | |
| virtual bool | PostUpdate () |
| The post-update method for StandardModel. More... | |
| virtual bool | PreUpdate () |
| The pre-update method for StandardModel. More... | |
| virtual const double | Qwemoller (const double q2, const double y) const |
| The computation of the electron's weak charge. More... | |
| virtual const double | Qwn () const |
| The computation of the neutron weak charge: Qwn. More... | |
| virtual const double | Qwp () const |
| The computation of the proton weak charge: Qwp. More... | |
| virtual const double | R0_f (const Particle f) const |
| The ratio \(R_\ell^0=\Gamma(Z\to {\rm hadrons})/\Gamma(Z\to \ell^+ \ell^-)\). More... | |
| virtual const double | R_inv () const |
| The ratio of the invisible and leptonic (electron) decay widths of the \(Z\) boson, \(R_{inv}\). More... | |
| virtual const double | rho_GammaW (const Particle fi, const Particle fj) const |
| EW radiative corrections to the width of \(W \to f_i \bar{f}_j\), denoted as \(\rho^W_{ij}\). More... | |
| virtual const gslpp::complex | rhoZ_f (const Particle f) const |
| The effective leptonic neutral-current coupling \(\rho_Z^l\) in the SM. More... | |
| virtual const double | Ruc () const |
| virtual const double | RWc () const |
| The ratio \(R_{W,c)=\Gamma(W\to c + X)/\Gamma(W\to had)\). More... | |
| virtual const double | RWlilj (const Particle li, const Particle lj) const |
| The lepton universality ratio \(R_{W,l_i/l_j)=\Gamma(W\to l_i \nu_i)/\Gamma(W\to l_j \nu_j)\). More... | |
| virtual const double | RZlilj (const Particle li, const Particle lj) const |
| The lepton universality ratio \(R_{Z,l_i/l_j)=\Gamma(Z\to l_i^+ l_i^-)/\Gamma(Z\to l_j^+ l_j^-)\). More... | |
| const double | s02 () const |
| The square of the sine of the weak mixing angle \(s_0^2\) defined without weak radiative corrections. More... | |
| void | setCKM (const CKM &CKMMatrix) |
| A set method to change the CKM matrix. More... | |
| virtual bool | setFlag (const std::string name, const bool value) |
| A method to set a flag of StandardModel. More... | |
| void | setFlagCacheInStandardModel (bool FlagCacheInStandardModel) |
| A set method to change the model flag CacheInStandardModel of StandardModel. More... | |
| void | setFlagNoApproximateGammaZ (bool FlagNoApproximateGammaZ) |
| bool | setFlagSigmaForAFB (const bool flagSigmaForAFB_i) |
| bool | setFlagSigmaForR (const bool flagSigmaForR_i) |
| virtual bool | setFlagStr (const std::string name, const std::string value) |
| A method to set a flag of StandardModel. More... | |
| void | setRequireCKM (bool requireCKM) |
| A set method to change the value of requireCKM. More... | |
| void | setSMSuccess (bool success) const |
| A set method to change the success status of the Standard Model update and matching. More... | |
| void | setYd (const gslpp::matrix< gslpp::complex > &Yd) |
| A set method to set the Yukawa matrix of the down-type quarks, \(Y_d\). More... | |
| void | setYe (const gslpp::matrix< gslpp::complex > &Ye) |
| A set method to set the Yukawa matrix of the charged leptons, \(Y_e\). More... | |
| void | setYu (const gslpp::matrix< gslpp::complex > &Yu) |
| A set method to set the Yukawa matrix of the up-type quarks, \(Y_u\). More... | |
| virtual const double | sigma0_had () const |
| The hadronic cross section for \(e^+e^- \to Z \to \mathrm{hadrons}\) at the \(Z\)-pole, \(\sigma_h^0\). More... | |
| virtual const double | SigmaeeHee (const double sqrt_s, const double Pe, const double Pp) const |
| The \(\sigma(e^+ e^- \to e^+ e^- H)\) in the Standard Model. More... | |
| virtual const double | SigmaeeHvv (const double sqrt_s, const double Pe, const double Pp) const |
| The \(\sigma(e^+ e^- \to \nu \bar{\nu} H)\) in the Standard Model. More... | |
| virtual const double | SigmaeeZH (const double sqrt_s, const double Pe, const double Pp) const |
| The \(\sigma(e^+ e^- \to Z H)\) in the Standard Model. More... | |
| virtual const double | sin2thetaEff (const Particle f) const |
| The effective weak mixing angle \(\sin^2\theta_{\rm eff}^{\,\ell}\) for \(Z\ell\bar{\ell}\) at the the \(Z\)-mass scale. More... | |
| StandardModel () | |
| The default constructor. More... | |
| const double | sW2 () const |
| virtual const double | sW2 (const double Mw_i) const |
| The square of the sine of the weak mixing angle in the on-shell scheme, denoted as \(s_W^2\). More... | |
| const double | sW2_MSbar_Approx () const |
| The (approximated formula for the) square of the sine of the weak mixing angle in the MSbar scheme, denoted as \(\hat{s}_{W}^2\). See: PDG 22, R.L. Workman et al. (Particle Data Group), Prog. Theor. Exp. Phys. 2022, 083C01 (2022) More... | |
| const double | sW2_ND () const |
| The square of the sine of the weak mixing angle in the MSbar-ND scheme (w/o decoupling $\alpha\ln(m_t/M_Z)$ terms), denoted as \(\hat{s}_{ND}^2\). See: PDG 22, R.L. Workman et al. (Particle Data Group), Prog. Theor. Exp. Phys. 2022, 083C01 (2022) (eq. 10.13a/10.13b) More... | |
| virtual const double | TauLFU_gmuge () const |
| The computation of the LFU ratio \(g_\mu/ g_e \). More... | |
| virtual const double | TauLFU_gtauge () const |
| The computation of the LFU ratio \(g_\tau/ g_e \). More... | |
| virtual const double | TauLFU_gtaugmu () const |
| The computation of the LFU ratio \(g_\tau/ g_\mu \). More... | |
| virtual const double | TauLFU_gtaugmuK () const |
| The computation of the LFU ratio \(\left(g_\tau/ g_\mu\right)_K \). More... | |
| virtual const double | TauLFU_gtaugmuPi () const |
| The computation of the LFU ratio \(\left(g_\tau/ g_\mu\right)_\pi \). More... | |
| virtual const double | ThetaLnuN () const |
| The effective neutrino nucleon LH parameter: ThetaLnuN. More... | |
| virtual const double | ThetaRnuN () const |
| The effective neutrino nucleon RH parameter: ThetaRnuN. More... | |
| const double | tovers2 (const double cosmin, const double cosmax) const |
| const double | uovers2 (const double cosmin, const double cosmax) const |
| virtual bool | Update (const std::map< std::string, double > &DPars) |
| The update method for StandardModel. More... | |
| const double | v () const |
| The Higgs vacuum expectation value. More... | |
| virtual | ~StandardModel () |
| The default destructor. More... | |
| Public Member Functions inherited from QCD | |
| const double | AboveTh (const double mu) const |
| The active flavour threshold above the scale \(\mu\) as defined in QCD::Thresholds(). More... | |
| void | addParameters (std::vector< std::string > params_i) |
| A method to add parameters that are specific to only one set of observables. More... | |
| const double | Als (const double mu, const int Nf_in, const orders order=FULLNLO) const |
| Computes the running strong coupling \(\alpha_s(\mu)\) with \(N_f\) active flavours in the \(\overline{\mathrm{MS}}\) scheme. In the cases of LO, NLO and FULLNLO, the coupling is computed with AlsWithInit(). On the other hand, in the cases of NNLO and FULLNNLO, the coupling is computed with AlsWithLambda(). More... | |
| const double | Als (const double mu, const orders order=FULLNLO, const bool Nf_thr=true) const |
| const double | Als4 (const double mu) const |
| The value of \(\alpha_s^{\mathrm{FULLNLO}}\) at any scale \(\mu\) with the number of flavours \(n_f = 4\). More... | |
| const double | AlsByOrder (const double mu, const int Nf_in, const orders order=FULLNLO) const |
| const double | AlsByOrder (const double mu, const orders order=FULLNLO, bool Nf_thr=true) const |
| const double | AlsOLD (const double mu, const orders order=FULLNLO) const |
| Computes the running strong coupling \(\alpha_s(\mu)\) in the \(\overline{\mathrm{MS}}\) scheme. In the cases of LO, NLO and FULLNNLO, the coupling is computed with AlsWithInit(). On the other hand, in the cases of NNLO and FULLNNLO, the coupling is computed with AlsWithLambda(). More... | |
| const double | AlsWithInit (const double mu, const double alsi, const double mu_i, const int nf, const orders order) const |
| Computes the running strong coupling \(\alpha_s(\mu)\) from \(\alpha_s(\mu_i)\) in the \(\overline{\mathrm{MS}}\) scheme, where it is forbidden to across a flavour threshold in the RG running from \(\mu_i\) to \(\mu\). More... | |
| const double | AlsWithLambda (const double mu, const orders order) const |
| Computes the running strong coupling \(\alpha_s(\mu)\) in the \(\overline{\mathrm{MS}}\) scheme with the use of \(\Lambda_{\rm QCD}\). More... | |
| const double | BelowTh (const double mu) const |
| The active flavour threshold below the scale \(\mu\) as defined in QCD::Thresholds(). More... | |
| const double | Beta0 (const double nf) const |
| The \(\beta_0(n_f)\) coefficient for a certain number of flavours \(n_f\). More... | |
| const double | Beta1 (const double nf) const |
| The \(\beta_1(n_f)\) coefficient for a certain number of flavours \(n_f\). More... | |
| const double | Beta2 (const double nf) const |
| The \(\beta_2(n_f)\) coefficient for a certain number of flavours \(n_f\). More... | |
| const double | Beta3 (const double nf) const |
| The \(\beta_3(n_f)\) coefficient for a certain number of flavours \(n_f\). More... | |
| void | CacheShift (double cache[][5], int n) const |
| A member used to manage the caching for this class. More... | |
| void | CacheShift (int cache[][5], int n) const |
| const orders | FullOrder (orders order) const |
| Return the FULLORDER enum corresponding to order. More... | |
| const double | Gamma0 (const double nf) const |
| The \(\gamma_0\) coefficient used to compute the running of a mass. More... | |
| const double | Gamma1 (const double nf) const |
| The \(\gamma_1\) coefficient used to compute the running of a mass. More... | |
| const double | Gamma2 (const double nf) const |
| The \(\gamma_2\) coefficient used to compute the running of a mass. More... | |
| const double | getAlsM () const |
| A get method to access the value of \(\alpha_s(M_{\alpha_s})\). More... | |
| const BParameter & | getBBd () const |
| For getting the bag parameters corresponding to the operator basis \(O_1 -O_5\) in \(\Delta b = 2\) process in the \(B_d\) meson system. More... | |
| const BParameter & | getBBd_subleading () const |
| For getting the subleading bag parameters \(R_2 - R_3\) in \(\Delta b = 2\) process in the \(B_d\) meson system. More... | |
| const BParameter & | getBBs () const |
| For getting the bag parameters corresponding to the operator basis \(O_1 -O_5\) in \(\Delta b = 2\) process in the \(B_s\) meson system. More... | |
| const BParameter & | getBBs_subleading () const |
| For getting the subleading bag parameters \(R_2 - R_3\) in \(\Delta b = 2\) process in the \(B_s\) meson system. More... | |
| const BParameter & | getBD () const |
| For getting the bag parameters corresponding to the operator basis \(O_1 -O_5\) in \(\Delta c = 2\) process in the \(D^0\) meson system. More... | |
| const BParameter & | getBK () const |
| For getting the bag parameters corresponding to the operator basis \(O_1 -O_5\) in \(\Delta s = 2\) process in the \(K^0\) meson system. More... | |
| const BParameter & | getBKd1 () const |
| const BParameter & | getBKd3 () const |
| const double | getCF () const |
| A get method to access the Casimir factor of QCD. More... | |
| const double | getMAls () const |
| A get method to access the mass scale \(M_{\alpha_s}\) at which the strong coupling constant measurement is provided. More... | |
| const Meson & | getMesons (const QCD::meson m) const |
| A get method to access a meson as an object of the type Meson. More... | |
| const double | getMtpole () const |
| A get method to access the pole mass of the top quark. More... | |
| const double | getMub () const |
| A get method to access the threshold between five- and four-flavour theory in GeV. More... | |
| const double | getMuc () const |
| A get method to access the threshold between four- and three-flavour theory in GeV. More... | |
| const double | getMut () const |
| A get method to access the threshold between six- and five-flavour theory in GeV. More... | |
| const double | getNc () const |
| A get method to access the number of colours \(N_c\). More... | |
| const double | getOptionalParameter (std::string name) const |
| A method to get parameters that are specific to only one set of observables. More... | |
| const Particle & | getQuarks (const QCD::quark q) const |
| A get method to access a quark as an object of the type Particle. More... | |
| std::vector< std::string > | getUnknownParameters () |
| A method to get the vector of the parameters that have been specified in the configuration file but not being used. More... | |
| void | initializeBParameter (std::string name_i) const |
| A method to initialize B Parameter and the corresponding meson. More... | |
| void | initializeMeson (QCD::meson meson_i) const |
| A method to initialize a meson. More... | |
| bool | isQCDsuccess () const |
| A getter for the QCDsuccess flag. More... | |
| const double | logLambda (const double nf, orders order) const |
| Computes \(\ln\Lambda_\mathrm{QCD}\) with nf flavours in GeV. More... | |
| const double | Mbar2Mp (const double mbar, const quark q, const orders order=FULLNNLO) const |
| Converts the \(\overline{\mathrm{MS}}\) mass \(m(m)\) to the pole mass. More... | |
| const double | Mofmu2Mbar (const double m, const double mu, const quark q) const |
| Converts a quark running mass at an arbitrary scale to the corresponding \(\overline{\mathrm{MS}}\) mass \(m(m)\). More... | |
| const double | Mp2Mbar (const double mp, const quark q, orders order=FULLNNLO) const |
| Converts a quark pole mass to the corresponding \(\overline{\mathrm{MS}}\) mass \(m(m)\). More... | |
| const double | Mrun (const double mu, const double m, const quark q, const orders order=FULLNNLO) const |
| Computes a running quark mass \(m(\mu)\) from \(m(m)\). More... | |
| const double | Mrun (const double mu_f, const double mu_i, const double m, const quark q, const orders order=FULLNNLO) const |
| Runs a quark mass from \(\mu_i\) to \(\mu_f\). More... | |
| const double | Mrun4 (const double mu_f, const double mu_i, const double m) const |
| The running of a mass with the number of flavours \(n_f = 4\). More... | |
| const double | MS2DRqmass (const double MSbar) const |
| Converts a quark mass from the \(\overline{\mathrm{MS}}\) scheme to the \(\overline{\mathrm{DR}}\) scheme. More... | |
| const double | MS2DRqmass (const double MSscale, const double MSbar) const |
| Converts a quark mass from the \(\overline{\mathrm{MS}}\) scheme to the \(\overline{\mathrm{DR}}\) scheme. More... | |
| const double | Nf (const double mu) const |
| The number of active flavour at scale \(\mu\). More... | |
| const double | NfThresholdCorrections (double mu, double M, double als, int nf, orders order) const |
| Threshold corrections in matching \(\alpha_s(n_f+1)\) with \(\alpha_s(n_f)\) from eq. (34) of hep-ph/0512060. More... | |
| const std::string | orderToString (const orders order) const |
| Converts an object of the enum type "orders" to the corresponding string. More... | |
| QCD () | |
| Constructor. More... | |
| void | setComputemt (bool computemt) |
| A set method to change the value of computemt. More... | |
| void | setMtpole (double mtpole_in) |
| A method to set the pole mass of the top quark. More... | |
| void | setNc (double Nc) |
| A set method to change the number of colours \(N_c\). More... | |
| void | setOptionalParameter (std::string name, double value) |
| A method to set the parameter value for the parameters that are specific to only one set of observables. More... | |
| void | setQuarkMass (const quark q, const double mass) |
| A set method to change the mass of a quark. More... | |
| const double | Thresholds (const int i) const |
| For accessing the active flavour threshold scales. More... | |
| Public Member Functions inherited from Model | |
| void | addMissingModelParameter (const std::string &missingParameterName) |
| std::vector< std::string > | getmissingModelParameters () |
| unsigned int | getMissingModelParametersCount () |
| std::string | getModelName () const |
| A method to fetch the name of the model. More... | |
| const double & | getModelParam (std::string name) const |
| bool | isModelFWC_DF2 () const |
| bool | isModelGeneralTHDM () const |
| bool | isModelGeorgiMachacek () const |
| bool | IsModelInitialized () const |
| A method to check if the model is initialized. More... | |
| bool | isModelLinearized () const |
| bool | isModelNPquadratic () const |
| bool | isModelParam (std::string name) const |
| bool | isModelSUSY () const |
| bool | isModelTHDM () const |
| bool | isModelTHDMW () const |
| bool | IsUpdateError () const |
| A method to check if there was any error in the model update process. More... | |
| Model () | |
| The default constructor. More... | |
| void | raiseMissingModelParameterCount () |
| void | setModelFWC_DF2 () |
| void | setModelGeneralTHDM () |
| void | setModelGeorgiMachacek () |
| void | setModelInitialized (bool ModelInitialized) |
| A set method to fix the failure or success of the initialization of the model. More... | |
| void | setModelLinearized (bool linearized=true) |
| void | setModelName (const std::string name) |
| A method to set the name of the model. More... | |
| void | setModelNPquadratic (bool NPquadratic=true) |
| void | setModelSUSY () |
| void | setModelTHDM () |
| void | setModelTHDMW () |
| void | setSliced (bool Sliced) |
| void | setUpdateError (bool UpdateError) |
| A set method to fix the update status as success or failure. More... | |
| virtual | ~Model () |
| The default destructor. More... | |
Static Public Attributes | |
| static const double | GeVminus2_to_nb = 389379.338 |
| static const double | Mw_error = 0.00001 |
| The target accuracy of the iterative calculation of the \(W\)-boson mass in units of GeV. More... | |
| static const int | NSMvars = 28 |
| The number of the model parameters in StandardModel. More... | |
| static const int | NumSMParamsForEWPO = 35 |
| The number of the SM parameters that are relevant to the EW precision observables. More... | |
| static std::string | SMvars [NSMvars] |
| A string array containing the labels of the model parameters in StandardModel. More... | |
| Static Public Attributes inherited from QCD | |
| static const int | NQCDvars = 11 |
| The number of model parameters in QCD. More... | |
| static std::string | QCDvars [NQCDvars] |
| An array containing the labels under which all QCD parameters are stored in a vector of ModelParameter via InputParser::ReadParameters(). More... | |
Protected Member Functions | |
| const double | AFB_NoISR_l (const QCD::lepton l_flavor, const double s) const |
| const double | AFB_NoISR_q (const QCD::quark q_flavor, const double s) const |
| bool | checkEWPOscheme (const std::string scheme) const |
| A method to check if a given scheme name in string form is valid. More... | |
| virtual void | computeCKM () |
| The method to compute the CKM matrix. More... | |
| virtual void | computeYukawas () |
| The method to compute the Yukawas matrix. More... | |
| double | Delta_EWQCD (const QCD::quark q) const |
| The non-factorizable EW-QCD corrections to the partial widths for \(Z\to q\bar{q}\), denoted as \(\Delta_{\mathrm{EW/QCD}}\). More... | |
| const double | getIntegrand_AFBnumeratorWithISR_bottom133 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom167 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom172 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom183 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom189 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom192 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom196 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom200 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom202 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom205 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_bottom207 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm133 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm167 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm172 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm183 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm189 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm192 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm196 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm200 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm202 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm205 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_charm207 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu130 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu136 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu161 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu172 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu183 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu189 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu192 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu196 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu200 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu202 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu205 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_mu207 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau130 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau136 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau161 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau172 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau183 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau189 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau192 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau196 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau200 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau202 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau205 (double x) const |
| const double | getIntegrand_AFBnumeratorWithISR_tau207 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom130 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom133 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom136 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom161 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom167 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom172 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom183 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom189 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom192 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom196 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom200 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom202 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom205 (double x) const |
| const double | getIntegrand_dsigmaBox_bottom207 (double x) const |
| const double | getIntegrand_dsigmaBox_charm130 (double x) const |
| const double | getIntegrand_dsigmaBox_charm133 (double x) const |
| const double | getIntegrand_dsigmaBox_charm136 (double x) const |
| const double | getIntegrand_dsigmaBox_charm161 (double x) const |
| const double | getIntegrand_dsigmaBox_charm167 (double x) const |
| const double | getIntegrand_dsigmaBox_charm172 (double x) const |
| const double | getIntegrand_dsigmaBox_charm183 (double x) const |
| const double | getIntegrand_dsigmaBox_charm189 (double x) const |
| const double | getIntegrand_dsigmaBox_charm192 (double x) const |
| const double | getIntegrand_dsigmaBox_charm196 (double x) const |
| const double | getIntegrand_dsigmaBox_charm200 (double x) const |
| const double | getIntegrand_dsigmaBox_charm202 (double x) const |
| const double | getIntegrand_dsigmaBox_charm205 (double x) const |
| const double | getIntegrand_dsigmaBox_charm207 (double x) const |
| const double | getIntegrand_dsigmaBox_down130 (double x) const |
| const double | getIntegrand_dsigmaBox_down133 (double x) const |
| const double | getIntegrand_dsigmaBox_down136 (double x) const |
| const double | getIntegrand_dsigmaBox_down161 (double x) const |
| const double | getIntegrand_dsigmaBox_down167 (double x) const |
| const double | getIntegrand_dsigmaBox_down172 (double x) const |
| const double | getIntegrand_dsigmaBox_down183 (double x) const |
| const double | getIntegrand_dsigmaBox_down189 (double x) const |
| const double | getIntegrand_dsigmaBox_down192 (double x) const |
| const double | getIntegrand_dsigmaBox_down196 (double x) const |
| const double | getIntegrand_dsigmaBox_down200 (double x) const |
| const double | getIntegrand_dsigmaBox_down202 (double x) const |
| const double | getIntegrand_dsigmaBox_down205 (double x) const |
| const double | getIntegrand_dsigmaBox_down207 (double x) const |
| const double | getIntegrand_dsigmaBox_mu130 (double x) const |
| const double | getIntegrand_dsigmaBox_mu133 (double x) const |
| const double | getIntegrand_dsigmaBox_mu136 (double x) const |
| const double | getIntegrand_dsigmaBox_mu161 (double x) const |
| const double | getIntegrand_dsigmaBox_mu167 (double x) const |
| const double | getIntegrand_dsigmaBox_mu172 (double x) const |
| const double | getIntegrand_dsigmaBox_mu183 (double x) const |
| const double | getIntegrand_dsigmaBox_mu189 (double x) const |
| const double | getIntegrand_dsigmaBox_mu192 (double x) const |
| const double | getIntegrand_dsigmaBox_mu196 (double x) const |
| const double | getIntegrand_dsigmaBox_mu200 (double x) const |
| const double | getIntegrand_dsigmaBox_mu202 (double x) const |
| const double | getIntegrand_dsigmaBox_mu205 (double x) const |
| const double | getIntegrand_dsigmaBox_mu207 (double x) const |
| const double | getIntegrand_dsigmaBox_strange130 (double x) const |
| const double | getIntegrand_dsigmaBox_strange133 (double x) const |
| const double | getIntegrand_dsigmaBox_strange136 (double x) const |
| const double | getIntegrand_dsigmaBox_strange161 (double x) const |
| const double | getIntegrand_dsigmaBox_strange167 (double x) const |
| const double | getIntegrand_dsigmaBox_strange172 (double x) const |
| const double | getIntegrand_dsigmaBox_strange183 (double x) const |
| const double | getIntegrand_dsigmaBox_strange189 (double x) const |
| const double | getIntegrand_dsigmaBox_strange192 (double x) const |
| const double | getIntegrand_dsigmaBox_strange196 (double x) const |
| const double | getIntegrand_dsigmaBox_strange200 (double x) const |
| const double | getIntegrand_dsigmaBox_strange202 (double x) const |
| const double | getIntegrand_dsigmaBox_strange205 (double x) const |
| const double | getIntegrand_dsigmaBox_strange207 (double x) const |
| const double | getIntegrand_dsigmaBox_tau130 (double x) const |
| const double | getIntegrand_dsigmaBox_tau133 (double x) const |
| const double | getIntegrand_dsigmaBox_tau136 (double x) const |
| const double | getIntegrand_dsigmaBox_tau161 (double x) const |
| const double | getIntegrand_dsigmaBox_tau167 (double x) const |
| const double | getIntegrand_dsigmaBox_tau172 (double x) const |
| const double | getIntegrand_dsigmaBox_tau183 (double x) const |
| const double | getIntegrand_dsigmaBox_tau189 (double x) const |
| const double | getIntegrand_dsigmaBox_tau192 (double x) const |
| const double | getIntegrand_dsigmaBox_tau196 (double x) const |
| const double | getIntegrand_dsigmaBox_tau200 (double x) const |
| const double | getIntegrand_dsigmaBox_tau202 (double x) const |
| const double | getIntegrand_dsigmaBox_tau205 (double x) const |
| const double | getIntegrand_dsigmaBox_tau207 (double x) const |
| const double | getIntegrand_dsigmaBox_up130 (double x) const |
| const double | getIntegrand_dsigmaBox_up133 (double x) const |
| const double | getIntegrand_dsigmaBox_up136 (double x) const |
| const double | getIntegrand_dsigmaBox_up161 (double x) const |
| const double | getIntegrand_dsigmaBox_up167 (double x) const |
| const double | getIntegrand_dsigmaBox_up172 (double x) const |
| const double | getIntegrand_dsigmaBox_up183 (double x) const |
| const double | getIntegrand_dsigmaBox_up189 (double x) const |
| const double | getIntegrand_dsigmaBox_up192 (double x) const |
| const double | getIntegrand_dsigmaBox_up196 (double x) const |
| const double | getIntegrand_dsigmaBox_up200 (double x) const |
| const double | getIntegrand_dsigmaBox_up202 (double x) const |
| const double | getIntegrand_dsigmaBox_up205 (double x) const |
| const double | getIntegrand_dsigmaBox_up207 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom130 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom133 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom136 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom161 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom167 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom172 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom183 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom189 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom192 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom196 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom200 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom202 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom205 (double x) const |
| const double | getIntegrand_sigmaWithISR_bottom207 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm130 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm133 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm136 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm161 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm167 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm172 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm183 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm189 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm192 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm196 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm200 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm202 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm205 (double x) const |
| const double | getIntegrand_sigmaWithISR_charm207 (double x) const |
| const double | getIntegrand_sigmaWithISR_down130 (double x) const |
| const double | getIntegrand_sigmaWithISR_down133 (double x) const |
| const double | getIntegrand_sigmaWithISR_down136 (double x) const |
| const double | getIntegrand_sigmaWithISR_down161 (double x) const |
| const double | getIntegrand_sigmaWithISR_down167 (double x) const |
| const double | getIntegrand_sigmaWithISR_down172 (double x) const |
| const double | getIntegrand_sigmaWithISR_down183 (double x) const |
| const double | getIntegrand_sigmaWithISR_down189 (double x) const |
| const double | getIntegrand_sigmaWithISR_down192 (double x) const |
| const double | getIntegrand_sigmaWithISR_down196 (double x) const |
| const double | getIntegrand_sigmaWithISR_down200 (double x) const |
| const double | getIntegrand_sigmaWithISR_down202 (double x) const |
| const double | getIntegrand_sigmaWithISR_down205 (double x) const |
| const double | getIntegrand_sigmaWithISR_down207 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu130 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu136 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu161 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu172 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu183 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu189 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu192 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu196 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu200 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu202 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu205 (double x) const |
| const double | getIntegrand_sigmaWithISR_mu207 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange130 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange133 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange136 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange161 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange167 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange172 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange183 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange189 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange192 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange196 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange200 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange202 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange205 (double x) const |
| const double | getIntegrand_sigmaWithISR_strange207 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau130 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau136 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau161 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau172 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau183 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau189 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau192 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau196 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau200 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau202 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau205 (double x) const |
| const double | getIntegrand_sigmaWithISR_tau207 (double x) const |
| const double | getIntegrand_sigmaWithISR_up130 (double x) const |
| const double | getIntegrand_sigmaWithISR_up133 (double x) const |
| const double | getIntegrand_sigmaWithISR_up136 (double x) const |
| const double | getIntegrand_sigmaWithISR_up161 (double x) const |
| const double | getIntegrand_sigmaWithISR_up167 (double x) const |
| const double | getIntegrand_sigmaWithISR_up172 (double x) const |
| const double | getIntegrand_sigmaWithISR_up183 (double x) const |
| const double | getIntegrand_sigmaWithISR_up189 (double x) const |
| const double | getIntegrand_sigmaWithISR_up192 (double x) const |
| const double | getIntegrand_sigmaWithISR_up196 (double x) const |
| const double | getIntegrand_sigmaWithISR_up200 (double x) const |
| const double | getIntegrand_sigmaWithISR_up202 (double x) const |
| const double | getIntegrand_sigmaWithISR_up205 (double x) const |
| const double | getIntegrand_sigmaWithISR_up207 (double x) const |
| const double | Integrand_AFBnumeratorWithISR_l (double x, const QCD::lepton l_flavor, const double s) const |
| const double | Integrand_AFBnumeratorWithISR_q (double x, const QCD::quark q_flavor, const double s) const |
| const double | Integrand_dsigmaBox_l (double cosTheta, const QCD::lepton l_flavor, const double s) const |
| const double | Integrand_dsigmaBox_q (double cosTheta, const QCD::quark q_flavor, const double s) const |
| const double | Integrand_sigmaWithISR_l (double x, const QCD::lepton l_flavor, const double s) const |
| const double | Integrand_sigmaWithISR_q (double x, const QCD::quark q_flavor, const double s) const |
| double | m_q (const QCD::quark q, const double mu, const orders order=FULLNLO) const |
| double | RAq (const QCD::quark q) const |
| The radiator factor associated with the final-state QED and QCD corrections to the the axial-vector-current interactions, \(R_A^q(M_Z^2)\). More... | |
| double | resumKappaZ (const double DeltaRho[orders_EW_size], const double deltaKappa_rem[orders_EW_size], const double DeltaRbar_rem, const bool bool_Zbb) const |
| A method to compute the real part of the effetvive coupling \(\kappa_Z^f\) from \(\Delta\rho\), \(\delta\rho_{\rm rem}^{f}\) and \(\Delta r_{\mathrm{rem}}\). More... | |
| double | resumMw (const double Mw_i, const double DeltaRho[orders_EW_size], const double DeltaR_rem[orders_EW_size]) const |
| A method to compute the \(W\)-boson mass from \(\Delta\rho\) and \(\Delta r_{\mathrm{rem}}\). More... | |
| double | resumRhoZ (const double DeltaRho[orders_EW_size], const double deltaRho_rem[orders_EW_size], const double DeltaRbar_rem, const bool bool_Zbb) const |
| A method to compute the real part of the effective coupling \(\rho_Z^f\) from \(\Delta\rho\), \(\delta\rho_{\rm rem}^{f}\) and \(\Delta r_{\mathrm{rem}}\). More... | |
| double | RVh () const |
| The singlet vector corrections to the hadronic \(Z\)-boson width, denoted as \(R_V^h\). More... | |
| double | RVq (const QCD::quark q) const |
| The radiator factor associated with the final-state QED and QCD corrections to the the vector-current interactions, \(R_V^q(M_Z^2)\). More... | |
| double | SchemeToDouble (const std::string scheme) const |
| A method to convert a given scheme name in string form into a floating-point number with double precision. More... | |
| virtual void | setParameter (const std::string name, const double &value) |
| A method to set the value of a parameter of StandardModel. More... | |
| const double | sigma_NoISR_l (const QCD::lepton l_flavor, const double s) const |
| const double | sigma_NoISR_q (const QCD::quark q_flavor, const double s) const |
| double | taub () const |
| Top-mass corrections to the \(Zb\bar{b}\) vertex, denoted by \(\tau_b\). More... | |
| Protected Member Functions inherited from QCD | |
| const double | MassOfNf (int nf) const |
| The Mbar mass of the heaviest quark in the theory with Nf active flavour. More... | |
Protected Attributes | |
| double | A |
| The CKM parameter \(A\) in the Wolfenstein parameterization. More... | |
| double | ale |
| The fine-structure constant \(\alpha\). More... | |
| double | alpha21 |
| double | alpha31 |
| double | AlsMz |
| The strong coupling constant at the Z-boson mass, \(\alpha_s(M_Z)\). More... | |
| bool | bSigmaForAFB |
| bool | bSigmaForR |
| double | dAl5hMz |
| The five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\). (Non-input parameter) More... | |
| double | dAle5Mz |
| The five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\), used as input for FlagMWinput = FALSE. More... | |
| double | delGammaWlv |
| The theoretical uncertainty in \(\Gamma_W_{l\nu}\), denoted as \(\delta\,\Gamma_W_{l\nu}\). More... | |
| double | delGammaWqq |
| The theoretical uncertainty in \(\Gamma_W_{qq}\), denoted as \(\delta\,\Gamma_W_{qq}\). More... | |
| double | delGammaZ |
| The theoretical uncertainty in \(\Gamma_Z\), denoted as \(\delta\,\Gamma_Z\), in GeV. More... | |
| double | delMw |
| The theoretical uncertainty in \(M_W\), denoted as \(\delta\,M_W\), in GeV. More... | |
| double | delR0b |
| The theoretical uncertainty in \(R_b^0\), denoted as \(\delta\,R_b^0\). More... | |
| double | delR0c |
| The theoretical uncertainty in \(R_c^0\), denoted as \(\delta\,R_c^0\). More... | |
| double | delR0l |
| The theoretical uncertainty in \(R_l^0\), denoted as \(\delta\,R_l^0\). More... | |
| double | delsigma0H |
| The theoretical uncertainty in \(\sigma_{Hadron}^0\), denoted as \(\delta\,\sigma_{Hadron}^0\) in nb. More... | |
| double | delSin2th_b |
| The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{b}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{b}\). More... | |
| double | delSin2th_l |
| The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{\rm lept}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{\rm lept}\). More... | |
| double | delSin2th_q |
| The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{q\not = b,t}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{q\not = b,t}\). More... | |
| double | delta |
| double | etab |
| The CKM parameter \(\bar{\eta}\) in the Wolfenstein parameterization. More... | |
| bool | flag_order [orders_EW_size] |
| An array of internal flags controlling the inclusions of higher-order corrections. More... | |
| bool | FlagFixMuwMut |
| A boolean for the model flag FixMuwMut. More... | |
| bool | flagLEP2 [NUMofLEP2RCs] |
| double | gamma |
| \(\gamma \) used as an input for FlagWolfenstein = FALSE More... | |
| double | GF |
| The Fermi constant \(G_\mu\) in \({\rm GeV}^{-2}\). More... | |
| double | lambda |
| The CKM parameter \(\lambda\) in the Wolfenstein parameterization. More... | |
| Particle | leptons [6] |
| An array of Particle objects for the leptons. More... | |
| double | mHl |
| The Higgs mass \(m_h\) in GeV. More... | |
| double | muw |
| A matching scale \(\mu_W\) around the weak scale in GeV. More... | |
| double | Mw_inp |
| The mass of the \(W\) boson in GeV used as input for FlagMWinput = TRUE. More... | |
| CKM | myCKM |
| An object of type CKM. More... | |
| PMNS | myPMNS |
| double | Mz |
| The mass of the \(Z\) boson in GeV. More... | |
| bool | requireCKM |
| An internal flag to control whether the CKM matrix has to be recomputed. More... | |
| bool | requireYe |
| An internal flag to control whether the charged-lepton Yukawa matrix has to be recomputed. More... | |
| bool | requireYn |
| An internal flag to control whether the neutrino Yukawa matrix has to be recomputed. More... | |
| double | rhob |
| The CKM parameter \(\bar{\rho}\) in the Wolfenstein parameterization. More... | |
| double | s12 |
| double | s13 |
| double | s23 |
| Flavour | SMFlavour |
| An object of type Flavour. More... | |
| Matching< StandardModelMatching, StandardModel > | SMM |
| An object of type Matching. More... | |
| double | Vcb |
| \(\vert V_{cb} \vert \) used as an input for FlagWolfenstein = FALSE More... | |
| double | Vub |
| \(\vert V_{ub} \vert \) used as an input for FlagWolfenstein = FALSE More... | |
| double | Vud |
| \(\vert V_{ud} \vert \) used as an input for FlagWolfenstein = FALSE and FlagUseVud = TRUE More... | |
| double | Vus |
| \(\vert V_{us} \vert \) used as an input for FlagWolfenstein = FALSE More... | |
| gslpp::matrix< gslpp::complex > | Yd |
| The Yukawa matrix of the down-type quarks. More... | |
| gslpp::matrix< gslpp::complex > | Ye |
| The Yukawa matrix of the charged leptons. More... | |
| gslpp::matrix< gslpp::complex > | Yn |
| The Yukawa matrix of the neutrinos. More... | |
| gslpp::matrix< gslpp::complex > | Yu |
| The Yukawa matrix of the up-type quarks. More... | |
| Protected Attributes inherited from QCD | |
| double | AlsM |
| The strong coupling constant at the mass scale MAls, \(\alpha_s(M_{\alpha_s})\). More... | |
| double | CA |
| double | CF |
| bool | computemt |
| Switch for computing the \(\overline{\mathrm{MS}}\) mass of the top quark. More... | |
| double | dAdA_NA |
| double | dFdA_NA |
| double | dFdF_NA |
| bool | FlagMpole2MbarNumeric |
| A flag to determine whether the pole mass to \(\over \mathrm{MS}\) mass conversion is done numerically. More... | |
| bool | FlagMtPole |
| A flag to determine whether the pole mass of the top quark is used as input. More... | |
| double | MAls |
| The mass scale in GeV at which the strong coupling measurement is provided. More... | |
| double | mtpole |
| The pole mass of the top quark. More... | |
| double | mub |
| The threshold between five- and four-flavour theory in GeV. More... | |
| double | muc |
| The threshold between four- and three-flavour theory in GeV. More... | |
| double | mut |
| The threshold between six- and five-flavour theory in GeV. More... | |
| double | NA |
| double | Nc |
| The number of colours. More... | |
| bool | QCDsuccess =true |
| Particle | quarks [6] |
| The vector of all SM quarks. More... | |
| bool | requireYd |
| Switch for generating the Yukawa couplings to the down-type quarks. More... | |
| bool | requireYu |
| Switch for generating the Yukawa couplings to the up-type quarks. More... | |
| double | TF |
| Protected Attributes inherited from Model | |
| bool | isSliced = false |
| A boolean set to true if the current istance is a slice of an extended object. More... | |
| std::map< std::string, std::reference_wrapper< const double > > | ModelParamMap |
| bool | UpdateError = false |
| A boolean set to false if update is successful. More... | |
Private Member Functions | |
| const double | AleWithInit (double mu, double alsi, double mu_i, orders order) const |
| const double | AlsE (double mu, orders order, bool Nf_thr) const |
| const double | AlsEByOrder (double mu, orders order, bool Nf_thr) const |
| const double | AlsEWithInit (double mu, double alsi, double mu_i, const int nf_i, orders order) const |
Private Attributes | |
| double | ale_cache [10][CacheSize] |
| Cache for \(\alpha_e\). More... | |
| double | als_cache [11][CacheSize] |
| Cache for \(\alpha_s\). More... | |
| double | average |
| double | DeltaAlpha_cache |
| A cache of the value of \(\Delta\alpha(M_Z^2)\). More... | |
| double | DeltaAlphaLepton_cache |
| A cache of the value of \(\Delta\alpha_{\mathrm{lept}}(M_Z^2)\). More... | |
| double | error |
| gsl_function | f_GSL |
| bool | FlagCacheInStandardModel |
| A flag for caching (true by default). More... | |
| std::string | FlagKappaZ |
| A string for the model flag KappaZ. More... | |
| std::string | FlagMw |
| A string for the model flag Mw. More... | |
| bool | FlagMWinput |
| A boolean for the model flag MWinput. More... | |
| bool | FlagNoApproximateGammaZ |
| A boolean for the model flag NoApproximateGammaZ. More... | |
| std::string | FlagRhoZ |
| A string for the model flag RhoZ. More... | |
| bool | FlagSMAux |
| A boolean for the model flag SMAux. More... | |
| bool | FlagUseVud |
| A boolean for the model flag UseVud. More... | |
| bool | FlagWithoutNonUniversalVC |
| A boolean for the model flag WithoutNonUniversalVC. More... | |
| bool | FlagWolfenstein |
| A boolean for the model flag Wolfenstein. More... | |
| double | GammaW_cache |
| A cache of the value of \(\Gamma_W\). More... | |
| int | iterationNo |
| gslpp::complex | kappaZ_f_cache [12] |
| A cache of the value of \(\kappa_Z^l\). More... | |
| double | Mw_cache |
| A cache of the value of \(M_W\). More... | |
| EWSMApproximateFormulae * | myApproximateFormulae |
| A pointer to an object of type EWSMApproximateFormulae. More... | |
| EWSMcache * | myEWSMcache |
| A pointer to an object of type EWSMcache. More... | |
| LeptonFlavour * | myLeptonFlavour |
| A pointer to an object of the type LeptonFlavour. More... | |
| EWSMOneLoopEW * | myOneLoopEW |
| A pointer to an object of type EWSMOneLoopEW. More... | |
| EWSMThreeLoopEW * | myThreeLoopEW |
| A pointer to an object of type EWSMThreeLoopEW. More... | |
| EWSMThreeLoopEW2QCD * | myThreeLoopEW2QCD |
| A pointer to an object of type EWSMThreeLoopEW2QCD. More... | |
| EWSMThreeLoopQCD * | myThreeLoopQCD |
| A pointer to an object of type EWSMThreeLoopQCD. More... | |
| EWSMTwoFermionsLEP2 * | myTwoFermionsLEP2 |
| A pointer to an object of type EWSMTwoFermionsLEP2. More... | |
| EWSMTwoLoopEW * | myTwoLoopEW |
| A pointer to an object of type EWSMTwoLoopEW. More... | |
| EWSMTwoLoopQCD * | myTwoLoopQCD |
| A pointer to an object of type EWSMTwoLoopQCD. More... | |
| orders | realorder |
| gslpp::complex | rhoZ_f_cache [12] |
| A cache of the value of \(\rho_Z^l\). More... | |
| double | SMparamsForEWPO_cache [NumSMParamsForEWPO] |
| double | SMresult_cache |
| bool | SMSuccess |
| A boolean for the success of the Standard Model update and matching. More... | |
| bool | useDeltaAlpha_cache |
| bool | useDeltaAlphaLepton_cache |
| bool | useGammaW_cache |
| bool | useKappaZ_f_cache [12] |
| bool | useMw_cache |
| bool | useRhoZ_f_cache [12] |
| gsl_integration_workspace * | w_GSL1 |
Static Private Attributes | |
| static const int | CacheSize = 5 |
| Defines the depth of the cache. More... | |
| Enumerator | |
|---|---|
| Weak | |
| WeakBox | |
| ISR | |
| QEDFSR | |
| QCDFSR | |
| NUMofLEP2RCs | |
Definition at line 526 of file StandardModel.h.
An enumerated type representing perturbative orders of radiative corrections to EW precision observables.
Definition at line 539 of file StandardModel.h.
| StandardModel::StandardModel | ( | ) |
The default constructor.
Definition at line 41 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The default destructor.
Definition at line 154 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The left-right asymmetry in \(e^+e^-\to Z\to \ell \bar{\ell}\) at the \(Z\)-pole, \(\mathcal{A}_\ell\).
The asymmetry \(\mathcal{A}_\ell\) is given by
\[ \mathcal{A}_\ell = \frac{2\, {\rm Re}\left(g_{V}^\ell/g_{A}^\ell\right)} {1+\left[{\rm Re}\left(g_{V}^\ell/g_{A}^\ell\right)\right]^2}\,, \]
where the ratio of the effective couplings \(g_{V}^\ell/g_{A}^\ell\) is computed via the two-loop approximate formula of \(\sin^2\theta_{\rm eff}^{\,\ell}\), EWSMApproximateFormulae::sin2thetaEff_l(), when checkNPZff_linearized() returns true and the model flag KappaZ of StandardModel is set to APPROXIMATEFORMULA.
| [in] | f | a lepton or quark |
Reimplemented in NPbase, NPSMEFTd6General, NPZbbbar, and NPEpsilons.
Definition at line 1345 of file StandardModel/src/StandardModel.cpp.
|
virtual |
| [in] | f | a lepton or quark |
Reimplemented in NPbase, NPSMEFTd6General, NPZbbbar, and NPEpsilons.
Definition at line 1352 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8039 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8047 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::AH_f | ( | const double | tau | ) | const |
Fermionic loop function entering in the calculation of the effective \(Hgg\) and \(H\gamma\gamma\) couplings.
\(A^H_f(\tau)=2\tau [1+(1-\tau)f(\tau)]\)
| [in] |
_form#4756, with \(M\) the mass of the fermion in the loop.
Definition at line 3302 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::AH_W | ( | const double | tau | ) | const |
W loop function entering in the calculation of the effective \(H\gamma\gamma\) coupling.
\(A^H_W(\tau)=-[2+3\tau + 3\tau*(2-\tau) f(\tau)]\)
| [in] |
_form#4756, with \(M\) the mass of the fermion in the loop.
Definition at line 3306 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::AHZga_f | ( | const double | tau, |
| const double | lambda | ||
| ) | const |
Fermionic loop function entering in the calculation of the effective \(HZ\gamma\) coupling.
| [in] |
_form#4756, \(\lambda=4 M^2/m_Z^2\), with \(M\) the mass of the fermion in the loop.
Definition at line 3310 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::AHZga_W | ( | const double | tau, |
| const double | lambda | ||
| ) | const |
W loop function entering in the calculation of the effective \(HZ\gamma\) coupling.
| [in] |
_form#4756, \(\lambda=4 M^2/m_Z^2\), with \(M\) the mass of the fermion in the loop.
Definition at line 3314 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::Ale | ( | double | mu, |
| orders | order, | ||
| bool | Nf_thr = true |
||
| ) | const |
The running electromagnetic coupling \(\alpha_e(\mu)\) in the \(\overline{MS}\) scheme.
See [Huber:2005ig]
| [in] | mu | renormalization scale \(\mu\) in GeV |
| [in] | order | order in the \(\alpha_e\) expansion as defined in the order enum in OrderScheme |
| [in] | Nf_thr | flag to activate flavour thresholds. Default: true |
Definition at line 783 of file StandardModel/src/StandardModel.cpp.
The running electromagnetic coupling \(\alpha(\mu)\) in the on-shell scheme.
See [Baikov:2012rr].
| [in] | mu | renormalization scale \(\mu\) in GeV. |
| [in] | order | LO/FULLNLO |
Definition at line 611 of file StandardModel/src/StandardModel.cpp.
|
private |
Definition at line 856 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The electromagnetic coupling at the \(Z\)-mass scale, \(\alpha(M_Z^2)=\alpha/(1-\Delta\alpha(M_Z^2))\).
The radiative corrections are included with Dyson resummation:
\[ \alpha(M_Z^2) = \frac{\alpha}{1 - \Delta\alpha(M_Z^2)}. \]
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 944 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the parity violating asymmetry in Moller scattering.
| [in] | q2 | the \(Q^2\) of the process |
| [in] | y |
Definition at line 2769 of file StandardModel/src/StandardModel.cpp.
Computes the running strong coupling \(\alpha_s(\mu)\) with \(N_f\) active flavours in the \(\overline{\mathrm{MS}}\) scheme. In the cases of LO, NLO and FULLNLO, the coupling is computed with AlsWithInit(). On the other hand, in the cases of NNLO and FULLNNLO, the coupling is computed with AlsWithLambda().
| [in] | mu | the scale \(\mu\) in GeV |
| [in] | Nf_in | number of active flavours |
| [in] | order | order in the \(\alpha_s\) expansion as defined in OrderScheme |
Definition at line 839 of file QCD.cpp.
|
inline |
The running QCD coupling \(\alpha(\mu)\) in the \(\overline{MS}\) scheme including QED corrections.
See [Huber:2005ig]
| [in] | mu | renormalization scale \(\mu\) in GeV. |
| [in] | order | order in the \(\alpha_s\) expansion as defined in OrderScheme |
| [in] | Nf_thr | true: \(n_f\) = Nf(mu), false: \(n_f\) = Nf(AlsM) |
| [in] | qed_flag | include \(\alpha_e\) corrections to the requested order in \(\alpha_s\). The \(\alpha_s\alpha_e\) term is included if NNNLO is requested. Default: false |
Definition at line 1120 of file StandardModel.h.
| const double QCD::Als | ( | const double | mu, |
| const orders | order = FULLNLO, |
||
| const bool | Nf_thr = true |
||
| ) | const |
Definition at line 826 of file QCD.cpp.
|
private |
Definition at line 680 of file StandardModel/src/StandardModel.cpp.
|
private |
Definition at line 692 of file StandardModel/src/StandardModel.cpp.
|
private |
Definition at line 755 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::Alstilde5 | ( | const double | mu | ) | const |
The value of \(\frac{\alpha_s^{\mathrm{FULLNLO}}}{4\pi}\) at any scale \(\mu\) with the number of flavours \(n_f = 4\) and full EW corrections.
| [in] | mu | the scale at which \(\alpha_s\) has to be computed |
Definition at line 951 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the anomalous magnetic moment of the muon \(a_\mu=(g_\mu-2)/2\).
Definition at line 2441 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::Beta_e | ( | int | nm, |
| unsigned int | nf | ||
| ) | const |
QED beta function coefficients - eq. (36) hep-ph/0512066.
| nm | powers of alpha_s and alpha_e as an integer |
| nf | number of active flavor |
Definition at line 660 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::Beta_s | ( | int | nm, |
| unsigned int | nf | ||
| ) | const |
QCD beta function coefficients including QED corrections - eq. (36) hep-ph/0512066.
| nm | powers of alpha_s and alpha_e as an integer |
| nf | number of active flavor |
Definition at line 632 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to b \bar{b})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3697 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to c \bar{c})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3687 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to \gamma \gamma)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3672 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \(\(H\to gg)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3652 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to \mu^+ \mu^-)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3677 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to s \bar{s})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3692 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to \tau^+ \tau^-)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3682 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to W W^*)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3662 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to Z \gamma)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3667 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The Br \((H\to Z Z^*)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3657 of file StandardModel/src/StandardModel.cpp.
The branching ratio of the \(W\) boson decaying into a SM fermion pair, \(Br(W\to f_i f_j)\).
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 1289 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::c02 | ( | ) | const |
The square of the cosine of the weak mixing angle \(c_0^2\) defined without weak radiative corrections.
The quantity \(c_0^2\) is given by
\[ c_0^2 = 1 - s_0^2\,, \]
where \(s_0^2\) is defined in s02().
See [Altarelli:1990zd] and [Altarelli:1991fk].
Definition at line 1020 of file StandardModel/src/StandardModel.cpp.
|
inlineprotected |
A method to check if a given scheme name in string form is valid.
| [in] | scheme | scheme name for \(M_W\), \(\rho_Z^f\) or \(\kappa_Z^f\) |
Definition at line 3552 of file StandardModel.h.
|
virtual |
A method to check the sanity of the set of model flags.
Reimplemented from QCD.
Definition at line 553 of file StandardModel/src/StandardModel.cpp.
|
virtual |
A method to check if all the mandatory parameters for StandardModel have been provided in model initialization.
| [in] | DPars | a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant) |
Reimplemented from QCD.
Reimplemented in CMFV, FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, NPDF2, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, HiggsChiral, HiggsKigen, NPEpsilons, NPEpsilons_pureNP, NPHiggs, NPSMEFTd6, NPSTU, NPSTUVWXY, NPSTUZbbbarLR, NPZbbbar, NPZbbbarLinearized, SigmaBR, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 370 of file StandardModel/src/StandardModel.cpp.
| bool StandardModel::checkSMparamsForEWPO | ( | ) |
A method to check whether the parameters relevant to the EWPO are updated.
This function is used for the cashing methods implemented in the current class: DeltaAlphaLepton(), DeltaAlpha(), Mw_SM(), rhoZ_l_SM(), rhoZ_q_SM(), kappaZ_l_SM(), kappaZ_q_SM() and GammaW_SM(). When the values of the StandardModel parameters are updated in the Monte Carlo run and differ from those stored in the cache SMparamsForEWPO_cache, this function updates the cache, and returns false.
Definition at line 562 of file StandardModel/src/StandardModel.cpp.
|
inline |
The Br \((H\to 4f)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2978 of file StandardModel.h.
|
inline |
The Br \((H\to 4l)\) \(l=e,\mu\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2945 of file StandardModel.h.
|
inline |
The Br \((H\to 4l)\) \(l=e,\mu,\tau\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2956 of file StandardModel.h.
|
inline |
The Br \((H\to 4q)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2967 of file StandardModel.h.
|
inline |
The Br \((H\to 4\nu)\) in the Standard Model.
Definition at line 2901 of file StandardModel.h.
|
inline |
The Br \((H\to bb)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2888 of file StandardModel.h.
|
inline |
The Br \((H\to cc)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2865 of file StandardModel.h.
|
inline |
The Br \((H\to e \nu \mu \nu)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2912 of file StandardModel.h.
|
inline |
The Br \((H\to\gamma\gamma)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2831 of file StandardModel.h.
|
inline |
The Br \((H\to gg)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2784 of file StandardModel.h.
|
inline |
The Br \((H\to l^+ l^- \nu \nu)\) \(l=e,\mu\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2923 of file StandardModel.h.
|
inline |
The Br \((H\to l^+ l^- \nu \nu)\) \(l=e,\mu,\tau\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2934 of file StandardModel.h.
|
inline |
The Br \((H\to \mu\mu)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2842 of file StandardModel.h.
|
inline |
The Br \((H\to ss)\) in the Standard Model.
From Table 7 in http://cdsweb.cern.ch/record/2629412/files/ATLAS-CONF-2018-031.pdf
Definition at line 2877 of file StandardModel.h.
|
inline |
The Br \((H\to \tau\tau)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2853 of file StandardModel.h.
|
inline |
The Br \((H\to WW)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2795 of file StandardModel.h.
|
inline |
The Br \((H\to Z\gamma)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2819 of file StandardModel.h.
|
inline |
The Br \((H\to ZZ)\) in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2807 of file StandardModel.h.
|
protectedvirtual |
The method to compute the CKM matrix.
Definition at line 382 of file StandardModel/src/StandardModel.cpp.
| void StandardModel::ComputeDeltaR_rem | ( | const double | Mw_i, |
| double | DeltaR_rem[orders_EW_size] | ||
| ) | const |
A method to collect \(\Delta r_{\mathrm{rem}}\) computed via subclasses.
This function collects \(\Delta r_{\mathrm{rem}}\) computed via EWSMOneLoopEW, EWSMTwoLoopQCD, EWSMTwoLoopEW, EWSMThreeLoopQCD, EWSMThreeLoopEW2QCD and EWSMThreeLoopEW classes.
| [in] | Mw_i | the \(W\)-boson mass |
| [out] | DeltaR_rem | Array of \(\Delta r_{\mathrm{rem}}\) |
Definition at line 1161 of file StandardModel/src/StandardModel.cpp.
| void StandardModel::ComputeDeltaRho | ( | const double | Mw_i, |
| double | DeltaRho[orders_EW_size] | ||
| ) | const |
A method to collect \(\Delta\rho\) computed via subclasses.
This function collects \(\Delta\rho\) computed via EWSMOneLoopEW, EWSMTwoLoopQCD, EWSMTwoLoopEW, EWSMThreeLoopQCD, EWSMThreeLoopEW2QCD and EWSMThreeLoopEW classes.
| [in] | Mw_i | the \(W\)-boson mass |
| [out] | DeltaRho | Array of \(\Delta\rho\) |
Definition at line 1132 of file StandardModel/src/StandardModel.cpp.
|
inline |
The top loop contribution to \(H\to\gamma\gamma\) in the Standard Model.
Currently it returns the value of tab 40 in ref. [Heinemeyer:2013tqa]
Definition at line 3066 of file StandardModel.h.
|
inline |
The mixed \(t-W\) loop contribution to \(H\to\gamma\gamma\) in the Standard Model.
Currently it returns the value of tab 40 in ref. [Heinemeyer:2013tqa]
Definition at line 3088 of file StandardModel.h.
|
inline |
The \(W\) loop contribution to \(H\to\gamma\gamma\) in the Standard Model.
Currently it returns the value of tab 40 in ref. [Heinemeyer:2013tqa]
Definition at line 3077 of file StandardModel.h.
|
inline |
The bottom loop contribution to \(H\to gg\) in the Standard Model.
Currently it returns the value of tab 39 in ref. [Heinemeyer:2013tqa]
Definition at line 3011 of file StandardModel.h.
|
inline |
The top-bottom interference contribution to \(H\to gg\) in the Standard Model.
Currently it returns the value of tab 39 in ref. [Heinemeyer:2013tqa]
Definition at line 3022 of file StandardModel.h.
|
inline |
The top loop contribution to \(H\to gg\) in the Standard Model.
Currently it returns the value of tab 39 in ref. [Heinemeyer:2013tqa]
Definition at line 3000 of file StandardModel.h.
|
inline |
The Higgs total width in the Standard Model.
Currently it returns the value for Mh=125.1 GeV provided by the LHCXSSWG update in the CERN Report 4 from 2016 https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageBR
Definition at line 2989 of file StandardModel.h.
|
inline |
The top loop contribution to \(H\to Z\gamma\) in the Standard Model.
Currently it returns the value of tab 41 in ref. [Heinemeyer:2013tqa]
Definition at line 3033 of file StandardModel.h.
|
inline |
The mixed \(t-W\) loop contribution to \(H\to Z\gamma\) in the Standard Model.
Currently it returns the value of tab 41 in ref. [Heinemeyer:2013tqa]
Definition at line 3055 of file StandardModel.h.
|
inline |
The \(W\) loop contribution to \(H\to Z\gamma\) in the Standard Model. Currently it returns the value of tab 41 in ref. [Heinemeyer:2013tqa].
Definition at line 3044 of file StandardModel.h.
|
inline |
The bbH production cross section in the Standard Model.
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2767 of file StandardModel.h.
|
inline |
The ggH cross section in the Standard Model.
See Tables B.67 and B.74 in ref. [Heinemeyer:2013tqa] and the updates in https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA for 7 and 8 TeV For the 13, 14 and 27 TeV values we use the updated numbers wrt the CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG1HELHCXsecs https://twiki.cern.ch/twiki/pub/LHCPhysics/LHCHXSWG1HELHCXsecs/hlhehiggs.pdf For 13.6 TeV we follow the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1: https://arxiv.org/pdf/2402.09955v1.pdf For the 100 TeV values we use the values from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/HiggsEuropeanStrategy
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2403 of file StandardModel.h.
|
inline |
The square of the bottom-quark contribution to the ggH cross section in the Standard Model.
The values have been obtained from: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA For 13.6 TeV we follow what is done in some cases in the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1 and use linear interpolation between the values at 13 and 14 TeV
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2465 of file StandardModel.h.
|
inline |
The top-bottom interference contribution to the ggH cross section in the Standard Model.
The values have been obtained from: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA For 13.6 TeV we follow what is done in some cases in the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1 and use linear interpolation between the values at 13 and 14 TeV
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2495 of file StandardModel.h.
|
inline |
The square of the top-quark contribution to the ggH cross section in the Standard Model.
The values have been obtained from: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA For 13.6 TeV we follow what is done in some cases in the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1 and use linear interpolation between the values at 13 and 14 TeV
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2435 of file StandardModel.h.
|
inline |
The tHq production cross section in the Standard Model.
For the 13 TeV values we use the official numbers a la CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageAt13TeV
Definition at line 2748 of file StandardModel.h.
|
inline |
The ttH production cross section in the Standard Model.
See Tables B.67 and B.74 in ref. [Heinemeyer:2013tqa] . For the 13 TeV values we use the official numbers a la CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageAt13TeV https://twiki.cern.ch/twiki/bin/view/LHCPhysics/CERNYellowReportPageAt14TeV For the 14 and 27 TeV values we use the updated numbers wrt the CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG1HELHCXsecs https://twiki.cern.ch/twiki/pub/LHCPhysics/LHCHXSWG1HELHCXsecs/hlhehiggs.pdf For 13.6 TeV we follow the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1: https://arxiv.org/pdf/2402.09955v1.pdf For the 100 TeV values we use the values from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/HiggsEuropeanStrategy
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2718 of file StandardModel.h.
|
inline |
The VBF cross section in the Standard Model.
See Tables B.67 and B.74 in ref. [Heinemeyer:2013tqa] . For the 7, 8, 13, 14 and 27 TeV values we use the updated numbers wrt the CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG1HELHCXsecs https://twiki.cern.ch/twiki/pub/LHCPhysics/LHCHXSWG1HELHCXsecs/hlhehiggs.pdf For 13.6 TeV we follow the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1: https://arxiv.org/pdf/2402.09955v1.pdf For the 100 TeV values we use the values from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/HiggsEuropeanStrategy
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2528 of file StandardModel.h.
|
inline |
The W fusion contribution \(\sigma_{WF}\) to higgs-production cross section in the Standard Model.
The values have been obtained from: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA For 13.6 TeV we follow what is done in some cases in the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1 and use linear interpolation between the values at 13 and 14 TeV
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2561 of file StandardModel.h.
|
inline |
The WH production cross section in the Standard Model.
See Tables B.67 and B.74 in ref. [Heinemeyer:2013tqa] . For the 13, 14 and 27 TeV values we use the updated numbers wrt the CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG1HELHCXsecs https://twiki.cern.ch/twiki/pub/LHCPhysics/LHCHXSWG1HELHCXsecs/hlhehiggs.pdf For 13.6 TeV we follow the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1: https://arxiv.org/pdf/2402.09955v1.pdf For the 100 TeV values we use the values from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/HiggsEuropeanStrategy
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2641 of file StandardModel.h.
|
inline |
The Z fusion contribution \(\sigma_{ZF}\) to higgs-production cross section in the Standard Model.
The values have been obtained from: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG2KAPPA For 13.6 TeV we follow what is done in some cases in the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1 and use linear interpolation between the values at 13 and 14 TeV
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2594 of file StandardModel.h.
|
inline |
The ZH production cross section in the Standard Model.
See Tables B.67 and B.74 in ref. [Heinemeyer:2013tqa] . For the 13, 14 and 27 TeV values we use the updated numbers wrt the CERN Report 4 2016 from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/LHCHXSWG1HELHCXsecs https://twiki.cern.ch/twiki/pub/LHCPhysics/LHCHXSWG1HELHCXsecs/hlhehiggs.pdf For 13.6 TeV we follow the LHC Higgs WG note: arXiv: 2402.09955 [hep-ph] V1: https://arxiv.org/pdf/2402.09955v1.pdf For the 100 TeV values we use the values from https://twiki.cern.ch/twiki/bin/view/LHCPhysics/HiggsEuropeanStrategy
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2678 of file StandardModel.h.
|
inline |
The Z W interference fusion contribution \(\sigma_{ZWF}\) to higgs-production cross section in the Standard Model.
Negligible (0.1%) in the Standard model.
| [in] | sqrt_s | the center-of-mass energy in TeV |
Definition at line 2623 of file StandardModel.h.
|
protectedvirtual |
The method to compute the Yukawas matrix.
Reimplemented in SUSY.
Definition at line 416 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 1087 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The square of the cosine of the weak mixing angle in the on-shell scheme, denoted as \(c_W^2\).
\[ c_W^2=\cos^2{\theta_W}=\frac{M_W^2}{M_Z^2}. \]
Definition at line 1082 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The 5-quark contribution to the running of the em constant to the \(Z\) pole. \(\Delta\alpha_{had}^{(5)}(M_Z)\).
Depending on the flag MWinput this is given by the input parameter dAle5Mz (MWinput=false) or it is computed from Mw (MWinput=true)
Definition at line 1074 of file StandardModel/src/StandardModel.cpp.
|
protected |
The non-factorizable EW-QCD corrections to the partial widths for \(Z\to q\bar{q}\), denoted as \(\Delta_{\mathrm{EW/QCD}}\).
See [Czarnecki:1996ei] and [Harlander:1997zb].
| [in] | q | name of a quark (see QCD::quark) |
Definition at line 2139 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::DeltaAlpha | ( | ) | const |
The total corrections to the electromagnetic coupling \(\alpha\) at the \(Z\)-mass scale, denoted as \(\Delta\alpha(M_Z^2)\).
\[ \Delta\alpha(M_Z^2) = \Delta\alpha_{\rm lept}(M_Z^2) + \Delta\alpha_{\rm had}^{(5)}(M_Z^2) + \Delta\alpha_{\rm top}(M_Z^2)\,. \]
Definition at line 932 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::DeltaAlphaL5q | ( | ) | const |
The sum of the leptonic and the five-flavour hadronic corrections to the electromagnetic coupling \(\alpha\) at the \(Z\)-mass scale, denoted as \(\Delta\alpha^{\ell+5q}(M_Z^2)\).
\[ \Delta\alpha^{\ell+5q}(M_Z^2) = \Delta\alpha_{\rm lept}(M_Z^2) + \Delta\alpha_{\rm had}^{(5)}(M_Z^2)\,. \]
Definition at line 907 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::DeltaAlphaLepton | ( | const double | s | ) | const |
Leptonic contribution to the electromagnetic coupling \(\alpha\), denoted as \(\Delta\alpha_{\mathrm{lept}}(s)\).
| [in] | s | invariant mass squared |
Definition at line 879 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::DeltaAlphaTop | ( | const double | s | ) | const |
Top-quark contribution to the electromagnetic coupling \(\alpha\), denoted as \(\Delta\alpha_{\mathrm{top}}(s)\).
| [in] | s | invariant mass squared |
Definition at line 913 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Flavour non-universal vertex corrections to \(\kappa_Z^l\), denoted by \(\Delta\kappa_Z^l\).
The non-universal contribution \(\Delta\kappa_Z^l\) is given by
\[ \Delta \kappa_Z^l = \kappa_Z^l - \kappa_Z^e = \frac{\alpha}{4\pi s_W^2} \left( \frac{\delta_l^2-\delta_e^2}{4c_W^2}\,\mathcal{F}_Z(M_Z^2) -u_l+u_e\right), \]
where \(u_l\) and \(\delta_l\) are defined as
\[ u_l = \frac{3v_l^2+a_l^2}{4c_W^2}\mathcal{F}_Z(M_Z^2) + \mathcal{F}_W^l(M_Z^2)\,, \qquad \delta_l = v_l - a_l \]
with the tree-level vector and axial-vector couplings \(v_l = I_3^l - 2Q_l s_W^2\) and \(a_l = I_3^l\), and the form factors \(\mathcal{F}_Z\) and \(\mathcal{F}_W^l\).
See [Ciuchini:2013pca] and references therein.
| [in] | f | a lepton or quark |
Definition at line 1770 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM prediction for \(\Delta r\) derived from that for the \(W\) boson mass.
If the model flag Mw of StandardModel is set to NORESUM or APPROXIMATEFORMULA, the quantity \(\Delta r\) is computed by using the following relation:
\[ s_W^2 M_W^2 = \frac{\pi\,\alpha}{\sqrt{2}G_\mu}(1+\Delta r)\,. \]
Otherwise, the following relation is employed instead:
\[ s_W^2 M_W^2 = \frac{\pi\,\alpha}{\sqrt{2}G_\mu(1-\Delta r)}\,, \]
where the resummation for \(\Delta r\) is considered.
Definition at line 1118 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM prediction for \(\Delta \overline{r}\) derived from that for the \(W\)-boson mass.
The quantity \(\Delta \overline{r}\) is computed by using the following relation:
\[ \overline{s}_W^2 \overline{M}_W^2 = \frac{\pi\,\alpha}{\sqrt{2}G_\mu}(1+\Delta \overline{r})\,, \]
where \(\overline{M}_W\) and \(\overline{s}_W\) are the \(W\)-boson mass and the sine of the weak mixing angle in the complex-pole/fixed-width scheme [Bardin:1988xt].
Definition at line 1228 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Flavour non-universal vertex corrections to \(\rho_Z^l\), denoted by \(\Delta\rho_Z^l\).
The non-universal contribution \(\Delta\rho_Z^l\) is given by
\[ \Delta \rho_Z^l = \rho_Z^l - \rho_Z^e = \frac{\alpha}{2\pi s_W^2}\left(u_l - u_e\right), \]
where \(u_l\) is defined as
\[ u_l = \frac{3v_l^2+a_l^2}{4c_W^2}\mathcal{F}_Z(M_Z^2) + \mathcal{F}_W^l(M_Z^2) \]
with the tree-level vector and axial-vector couplings \(v_l = I_3^l - 2Q_l s_W^2\) and \(a_l = I_3^l\) and the form factors, \(\mathcal{F}_Z\) and \(\mathcal{F}_W^l\).
See [Ciuchini:2013pca] and references therein.
| [in] | f | a lepton or quark |
Definition at line 1745 of file StandardModel/src/StandardModel.cpp.
|
inlinevirtual |
Definition at line 3289 of file StandardModel.h.
|
inlinevirtual |
|
inlinevirtual |
Definition at line 3259 of file StandardModel.h.
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
Definition at line 3252 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3248 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3228 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3232 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3236 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3244 of file StandardModel.h.
|
inlinevirtual |
Definition at line 3240 of file StandardModel.h.
|
virtual |
Definition at line 4059 of file StandardModel/src/StandardModel.cpp.
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
Definition at line 3176 of file StandardModel.h.
| const double StandardModel::eeffsigmaEbin | ( | const double | pol_e, |
| const double | pol_p, | ||
| const double | s, | ||
| const double | cosmin, | ||
| const double | cosmax | ||
| ) | const |
Definition at line 4025 of file StandardModel/src/StandardModel.cpp.
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
|
inlinevirtual |
|
virtual |
The SM contribution to the epsilon parameter \(\varepsilon_1\).
The parameters \(\varepsilon_1\) is defined as
\[ \varepsilon_1 = \Delta\rho'\,, \]
where \(\Delta\rho'=2\left(\sqrt{{\rm Re}(\rho_Z^e)}-1\right)\).
See [Altarelli:1990zd] and [Altarelli:1991fk].
Reimplemented in NPEpsilons, NPEpsilons_pureNP, NPSTU, and NPSTUVWXY.
Definition at line 1800 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM contribution to the epsilon parameter \(\varepsilon_2\).
The parameters \(\varepsilon_2\) is computed via the formula:
\[ \varepsilon_2 = c_0^2 \Delta\rho' + \frac{s_0^2}{c_0^2 - s_0^2} \Delta r_W - 2 s_0^2 \Delta\kappa'\,, \]
where \(\Delta\rho'\), \(\Delta r_W\) and \(\Delta\kappa'\) are defined as
\begin{align} \Delta\rho'=2\left(\sqrt{{\rm Re}(\rho_Z^e)}-1\right),\qquad \Delta r_W = 1 - \frac{\pi\,\alpha(M_Z^2)}{\sqrt{2}\,G_\mu M_Z^2 s_W^2 c_W^2},\qquad \Delta\kappa' = \frac{\sin^2\theta_{\mathrm{eff}}^e}{s_0^2} - 1\,, \end{align}
and \(s_0^2\) and \(c_0^2\) are given in s02() and c02(), respectively.
See [Altarelli:1990zd] and [Altarelli:1991fk].
Reimplemented in NPEpsilons, NPEpsilons_pureNP, NPSTU, and NPSTUVWXY.
Definition at line 1808 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM contribution to the epsilon parameter \(\varepsilon_3\).
The parameters \(\varepsilon_3\) is computed via the formula:
\[ \varepsilon_3 = c_0^2\Delta\rho' + (c_0^2-s_0^2)\Delta\kappa'\,, \]
where \(\Delta\rho'\) and \(\Delta\kappa'\) are defined as
\begin{align} \Delta\rho'=2\left(\sqrt{{\rm Re}(\rho_Z^e)}-1\right),\qquad \Delta\kappa' = \frac{\sin^2\theta_{\mathrm{eff}}^e}{s_0^2} - 1\,, \end{align}
and \(s_0^2\) and \(c_0^2\) are given in s02() and c02(), respectively.
See [Altarelli:1990zd] and [Altarelli:1991fk].
Reimplemented in NPEpsilons, NPEpsilons_pureNP, NPSTU, and NPSTUVWXY.
Definition at line 1820 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM contribution to the epsilon parameter \(\varepsilon_b\).
The parameters \(\varepsilon_b\) is computed via the formula:
\[ \epsilon_b = \frac{ {\rm Re}\left[ \kappa_Z^e + \Delta\kappa_Z^b \right]} {{\rm Re}(\kappa_Z^b)} - 1\,, \]
where \(\Delta\kappa_Z^b\), representing flavour non-universal vertex corrections to the \(Zb\bar{b}\) vertex, is neglected when the model flag WithoutNonUniversalVC of StandardModel is set to true.
See [Altarelli:1990zd], [Altarelli:1991fk] and [Altarelli:1993sz] for the \(\varepsilon\) parameterization and [Ciuchini:2013pca] for the flavour non-universal vertex corrections.
Reimplemented in NPEpsilons, NPEpsilons_pureNP, NPSTU, and NPSTUVWXY.
Definition at line 1830 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::f_triangle | ( | const double | tau | ) | const |
Loop function entering in the calculation of the effective \(Hgg\) and \(H\gamma\gamma\) couplings.
| [in] |
_form#4756, with \(M\) the mass of the particle in the loop.
Definition at line 3262 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::g_triangle | ( | const double | tau | ) | const |
Loop function entering in the calculation of the effective \(HZ\gamma\) coupling.
| [in] |
_form#4756, with \(M\) the mass of the particle in the loop.
Definition at line 3273 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective leptonic neutral-current axial-vector coupling \(g_A^l\) in the SM.
\[ g_A^l = \sqrt{\rho_Z^l}\, I_3^l\,. \]
| [in] | f | a lepton or quark |
Reimplemented in NPbase, and NPEpsilons.
Definition at line 1589 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The hadronic decay width of the \(Z\) boson, \(\Gamma_{h}\).
The hadronic width is given by the sum,
\[ \Gamma_h = \Gamma_u + \Gamma_d + \Gamma_c + \Gamma_s + \Gamma_b\,. \]
Furthermore, the singlet vector corrections are added, following the prescription in [Bardin:1997xq] :
\[ \Gamma_h = \sum_q \Gamma_q + 4N_c\Gamma_0 R_V^h\,. \]
Reimplemented in NPbase.
Definition at line 1417 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The invisible partial decay width of the \(Z\) boson, \(\Gamma_{\mathrm{inv}}\).
\[ \Gamma_{\mathrm{inv}} = 3\,\Gamma_\nu\,, \]
where \(\Gamma_{\nu}\) is the partial width for \(Z\to\nu\bar{\nu}\).
Definition at line 1411 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the muon decay.
Follows the formulae of PDG
Definition at line 3094 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the leptonic tau decays.
Follows the formulae of PDG for muon, adapted to tau leptons
Definition at line 3134 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The total decay width of the \(Z\) boson, \(\Gamma_Z\).
When checkNPZff_linearized() returns true and the model flag NoApproximateGammaZ of StandardModel is set to false, this function uses the two-loop approximate formula of \(\Gamma_Z\) via EWSMApproximateFormulae::X_full_2_loop(). Otherwise, the total decay width is calculated with
\[ \Gamma_Z = \Gamma_{e} + \Gamma_{\mu} + \Gamma_{\tau} + \Gamma_{\mathrm{inv}} + \Gamma_h\,. \]
Reimplemented in NPbase, NPEpsilons, NPSMEFTd6General, and NPZbbbar.
Definition at line 1439 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to b \bar{b})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3610 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to c \bar{c})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3558 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to \gamma \gamma)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3491 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to gg)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3368 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to \mu^+ \mu^-)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3534 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to s \bar{s})\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3584 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The total Higgs width \(\Gamma(H)\) in the Standard Model.
At the same level of the individual contributions
Definition at line 3636 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to \tau^+ \tau^-)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3546 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to W W^*)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3416 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to Z \gamma)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3432 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\Gamma(H\to Z Z^*)\) in the Standard Model.
Currently, only at tree level. From Higgs Hunter's guide
Definition at line 3400 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The total width of the \(W\) boson, \(\Gamma_W\).
Reimplemented in NPbase, NPEpsilons, NPEpsilons_pureNP, NPSMEFTd6, NPSMEFTd6General, NPSTUVWXY, and NPZbbbar.
Definition at line 1272 of file StandardModel/src/StandardModel.cpp.
A partial decay width of the \(W\) boson decay into a SM fermion pair.
\[ \Gamma^W_{ij} = |U_{ij}|^2\,\frac{G_\mu M_W^3}{6\sqrt{2}\,\pi}\,\rho^W_{ij} \]
where \(U\) denotes the MNS matrix, and \(\rho^W_{ij}\) represents EW radiative corrections.
\[ \Gamma^W_{ij} = 3 |V_{ij}|^2\,\frac{G_\mu M_W^3}{6\sqrt{2}\,\pi}\,\rho^W_{ij} \left( 1 + \frac{\alpha_s(M_W^2)}{\pi} \right). \]
where \(V\) denotes the CKM matrix, and \(\rho^W_{ij}\) represents EW radiative corrections.
| [in] | fi | a lepton or quark |
| [in] | fj | a lepton or quark |
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 1248 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(Z\to \ell\bar{\ell}\) partial decay width, \(\Gamma_\ell\).
When checkNPZff_linearized() returns true and the model flag NoApproximateGammaZ of StandardModel is set to false, this function uses the two-loop approximate formula of \(\Gamma_\ell\) via EWSMApproximateFormulae::X_full_2_loop(). Otherwise, the partial width is calculated with \(\rho_Z^\ell\) and \(g_{V}^\ell/g_{A}^\ell\) [Bardin:1999ak] :
\[ \Gamma_\ell = \Gamma_0 \big|\rho_Z^f\big| \sqrt{1-\frac{4m_\ell^2}{M_Z^2}} \left[ \left(1+\frac{2m_\ell^2}{M_Z^2}\right) \left(\left|\frac{g_{V}^\ell}{g_{A}^\ell}\right|^2 + 1 \right) - \frac{6m_\ell^2}{M_Z^2} \right] \left( 1 + \frac{3}{4}\frac{\alpha(M_Z^2)}{\pi}\, Q_\ell^2 \right) \]
with \(\Gamma_0=G_\mu M_Z^3/(24\sqrt{2}\pi)\).
| [in] | f | a lepton or quark |
Definition at line 1363 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective (muon) neutrino-electron axial-vector coupling: gAnue.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3074 of file StandardModel/src/StandardModel.cpp.
|
inline |
A get method to retrieve the fine-structure constant \(\alpha\).
Definition at line 801 of file StandardModel.h.
|
inline |
A get method to access the value of \(\alpha_s(M_Z)\).
Definition at line 783 of file StandardModel.h.
|
inlinevirtual |
The ratio of the absolute value of the $B_d$ mixing amplitude over the Standard Model value.
Reimplemented in NPDF2.
Definition at line 3098 of file StandardModel.h.
|
inlinevirtual |
The ratio of the absolute value of the $B_s$ mixing amplitude over the Standard Model value.
Reimplemented in NPDF2.
Definition at line 3107 of file StandardModel.h.
|
inlinevirtual |
A virtual implementation for the RealWeakEFTCC class.
Reimplemented in RealWeakEFTCC.
Definition at line 1205 of file StandardModel.h.
|
inlinevirtual |
A virtual implementation for the RealWeakEFTCC class.
Reimplemented in RealWeakEFTCC.
Definition at line 1210 of file StandardModel.h.
|
inlinevirtual |
A virtual implementation for the RealWeakEFTCC class.
Reimplemented in RealWeakEFTCC.
Definition at line 1215 of file StandardModel.h.
|
inlinevirtual |
A virtual implementation for the RealWeakEFTCC class.
Definition at line 1220 of file StandardModel.h.
|
inlinevirtual |
A virtual implementation for the RealWeakEFTCC class.
Definition at line 1225 of file StandardModel.h.
|
inlinevirtual |
The ratio of the real part of the $K$ mixing amplitude over the Standard Model value.
Reimplemented in NPDF2.
Definition at line 3116 of file StandardModel.h.
|
inlinevirtual |
The ratio of the imaginary part of the $K$ mixing amplitude over the Standard Model value.
Reimplemented in NPDF2.
Definition at line 3125 of file StandardModel.h.
|
inline |
A get method to retrieve the member object of type CKM.
Definition at line 952 of file StandardModel.h.
|
inline |
A get method to retrieve the five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\).
Definition at line 812 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\Gamma_W_{l\nu}\), denoted as \(\delta\,\Gamma_W_{l\nu}\).
Definition at line 924 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\Gamma_W_{qq}\), denoted as \(\delta\,\Gamma_W_{qq}\).
Definition at line 934 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\Gamma_Z\), denoted as \(\delta\,\Gamma_Z\).
Definition at line 874 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(M_W\), denoted as \(\delta\,M_W\).
Definition at line 831 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(R_b^0\), denoted as \(\delta\,R_b^0\).
Definition at line 914 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(R_c^0\), denoted as \(\delta\,R_c^0\).
Definition at line 904 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(R_l^0\), denoted as \(\delta\,R_l^0\).
Definition at line 894 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\sigma_{Hadron}^0\), denoted as \(\delta\,\sigma_{Hadron}^0\).
Definition at line 884 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{b}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{b}\).
Definition at line 864 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{\rm lept}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{\rm lept}\).
Definition at line 842 of file StandardModel.h.
|
inline |
A get method to retrieve the theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{q\not = b,t}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{q\not = b,t}\).
Definition at line 853 of file StandardModel.h.
|
inline |
A method to retrieve the model flag KappaZ.
See StandardModelFlags for detail.
Definition at line 726 of file StandardModel.h.
|
inline |
A method to retrieve the model flag Mw.
See StandardModelFlags for detail.
Definition at line 706 of file StandardModel.h.
|
inline |
A method to retrieve the model flag RhoZ.
See StandardModelFlags for detail.
Definition at line 716 of file StandardModel.h.
|
inline |
Definition at line 1065 of file StandardModel.h.
|
inline |
A get method to retrieve the Fermi constant \(G_\mu\).
Definition at line 792 of file StandardModel.h.
|
protected |
Definition at line 9545 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9551 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9557 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9563 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9569 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9575 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9581 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9587 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9593 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9599 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9605 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9476 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9482 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9488 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9494 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9500 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9506 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9512 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9518 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9524 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9530 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9536 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9314 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9320 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9326 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9332 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9338 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9344 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9350 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9356 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9362 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9368 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9374 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9380 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9387 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9393 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9399 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9405 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9411 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9417 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9423 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9429 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9435 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9441 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9447 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9453 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9206 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9212 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9218 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9224 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9230 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9236 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9242 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9248 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9254 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9260 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9266 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9272 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9278 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9284 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9028 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9034 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9040 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9046 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9052 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9058 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9064 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9070 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9076 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9082 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9088 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9094 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9100 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9106 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8940 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8946 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8952 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8958 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8964 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8970 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8976 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8982 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8988 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8994 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9000 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9006 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9012 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9018 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8688 of file StandardModel/src/StandardModel.cpp.
|
protected |
|
protected |
Definition at line 8694 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8700 of file StandardModel/src/StandardModel.cpp.
|
protected |
|
protected |
Definition at line 8706 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8712 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8718 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8724 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8730 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8736 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8742 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8748 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8754 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9116 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9122 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9128 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9134 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9140 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9148 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9154 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9160 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9166 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9172 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9178 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9184 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9190 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9196 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8764 of file StandardModel/src/StandardModel.cpp.
|
protected |
|
protected |
Definition at line 8770 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8776 of file StandardModel/src/StandardModel.cpp.
|
protected |
|
protected |
Definition at line 8782 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8788 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8794 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8800 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8806 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8812 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8818 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8824 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8830 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8853 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8859 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8865 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8871 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8877 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8883 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8889 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8895 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8901 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8907 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8913 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8919 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8925 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8931 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8594 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8600 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8606 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8612 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8618 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8624 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8630 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8636 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8642 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8648 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8654 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8660 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8666 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8672 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8418 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8424 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8430 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8436 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8442 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8448 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8454 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8460 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8466 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8472 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8478 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8484 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8490 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8496 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8329 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8335 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8342 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8348 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8354 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8360 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8366 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8372 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8378 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8384 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8390 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8396 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8402 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8408 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8073 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8079 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8085 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8091 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8097 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8103 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8109 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8115 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8121 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8127 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8133 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8139 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8506 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8512 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8518 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8524 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8530 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8536 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8542 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8548 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8554 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8560 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8566 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8572 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8578 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8584 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8146 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8152 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8158 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8164 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8170 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8176 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8182 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8188 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8194 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8200 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8206 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8212 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8242 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8248 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8254 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8260 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8266 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8272 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8278 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8284 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8290 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8296 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8302 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8308 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8314 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8320 of file StandardModel/src/StandardModel.cpp.
|
inline |
Definition at line 629 of file StandardModel.h.
|
inline |
A get method to retrieve the member object of a lepton.
| [in] | p | name of a lepton |
Definition at line 756 of file StandardModel.h.
|
inlinevirtual |
A get method to access the member reference of type StandardModelMatching.
Reimplemented in CMFV, FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, RealWeakEFTLFV, GeorgiMachacek, LeftRightSymmetricModel, NPSMEFTd6, NPSMEFTd6General, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 997 of file StandardModel.h.
|
inlinevirtual |
A get method to retrieve the Higgs mass \(m_h\).
Reimplemented in SUSY.
Definition at line 821 of file StandardModel.h.
|
inlinevirtual |
The MSbar running quark mass computed at NLO.
| q | the quark flavour |
| mu | the scale at which the running mass is returned |
Definition at line 3342 of file StandardModel.h.
|
inline |
A get method to retrieve the matching scale \(\mu_W\) around the weak scale.
Definition at line 983 of file StandardModel.h.
|
inline |
A get method to access the input value of the mass of the \(W\) boson \(M_W\).
Definition at line 774 of file StandardModel.h.
|
inline |
A get method to retrieve the member pointer of type EWSMApproximateFormulae.
Definition at line 1024 of file StandardModel.h.
|
inline |
A get method to retrieve the member pointer of type EWSMcache.
Definition at line 1006 of file StandardModel.h.
|
inline |
Definition at line 1070 of file StandardModel.h.
|
inline |
A get method to retrieve the member pointer of type EWSMOneLoopEW,.
Definition at line 1015 of file StandardModel.h.
|
inline |
Definition at line 1040 of file StandardModel.h.
|
inline |
Definition at line 1045 of file StandardModel.h.
|
inline |
Definition at line 1050 of file StandardModel.h.
|
inline |
A get method to retrieve the member pointer of type EWSMTwoFermionsLEP2.
Definition at line 1034 of file StandardModel.h.
|
inline |
Definition at line 1055 of file StandardModel.h.
|
inline |
Definition at line 1060 of file StandardModel.h.
|
inline |
A get method to access the mass of the \(Z\) boson \(M_Z\).
Definition at line 765 of file StandardModel.h.
|
inlinevirtual |
Half the relative phase of the $B_d$ mixing amplitude w.r.t. the Standard Model one.
Reimplemented in NPDF2.
Definition at line 3143 of file StandardModel.h.
|
inlinevirtual |
Half the relative phase of the $B_s$ mixing amplitude w.r.t. the Standard Model one.
Reimplemented in NPDF2.
Definition at line 3134 of file StandardModel.h.
|
inlinevirtual |
Reimplemented in NPbase.
Definition at line 988 of file StandardModel.h.
|
inline |
A get method to retrieve the object of the PMNS matrix.
Definition at line 963 of file StandardModel.h.
|
inline |
A get method to retrieve the CKM matrix.
Definition at line 943 of file StandardModel.h.
|
inline |
A get method to retrieve the Yukawa matrix of the down-type quarks, \(Y_d\).
Definition at line 3390 of file StandardModel.h.
|
inline |
A get method to retrieve the Yukawa matrix of the charged leptons, \(Y_e\).
Definition at line 3410 of file StandardModel.h.
|
inline |
A get method to retrieve the Yukawa matrix of the neutrinos, \(Y_\nu\).
Definition at line 973 of file StandardModel.h.
|
inline |
A get method to retrieve the Yukawa matrix of the up-type quarks, \(Y_u\).
Definition at line 3370 of file StandardModel.h.
|
virtual |
The effective neutrino nucleon LH coupling: gLnuN2.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3007 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective neutrino nucleon RH coupling: gRnuN2.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3021 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective leptonic neutral-current vector coupling \(g_V^l\) in the SM.
\[ g_V^l = g_A^l (1 - 4|Q_l|\kappa_Z^l s_W^2)\,. \]
| [in] | f | a lepton or quark |
Reimplemented in NPbase, and NPEpsilons.
Definition at line 1583 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective (muon) neutrino-electron vector coupling: gVnue.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3061 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::I_triangle_1 | ( | const double | tau, |
| const double | lambda | ||
| ) | const |
Loop function entering in the calculation of the effective \(HZ\gamma\) coupling.
| [in] |
_form#4756, \(\lambda=4 M^2/m_Z^2\), with \(M\) the mass of the particle in the loop.
Definition at line 3284 of file StandardModel/src/StandardModel.cpp.
| gslpp::complex StandardModel::I_triangle_2 | ( | const double | tau, |
| const double | lambda | ||
| ) | const |
Loop function entering in the calculation of the effective \(HZ\gamma\) coupling.
| [in] |
_form#4756, \(\lambda=4 M^2/m_Z^2\), with \(M\) the mass of the particle in the loop.
Definition at line 3294 of file StandardModel/src/StandardModel.cpp.
|
virtual |
A method to initialize the model parameters.
| [in] | DPars | a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant) |
Reimplemented from QCD.
Reimplemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPSMEFTd6General, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 198 of file StandardModel/src/StandardModel.cpp.
|
virtual |
A method to initialize the model.
This method, called via InputParser::ReadParameters(), allocates memory to the pointers defined in the current class.
< A pointer to an object of type EWSMcache.
< A pointer to an object of type EWSMOneLoopEW.
< A pointer to an object of type EWSMTwoLoopQCD.
< A pointer to an object of type EWSMThreeLoopQCD.
< A pointer to an object of type EWSMTwoLoopEW.
< A pointer to an object of type EWSMThreeLoopEW2QCD.
< A pointer to an object of type EWSMThreeLoopEW.
< A pointer to an object of type EWSMApproximateFormulae.
< A pointer to an object of type EWSMTwoFermionsLEP2.
Reimplemented in FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 176 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9302 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 9461 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8682 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8841 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8058 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8218 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::intMLL2eeeeus2 | ( | const double | s, |
| const double | t0, | ||
| const double | t1 | ||
| ) | const |
Definition at line 3973 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::intMLR2eeeets2 | ( | const double | s, |
| const double | t0, | ||
| const double | t1 | ||
| ) | const |
Definition at line 3929 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::intMLRtilde2eeeest2 | ( | const double | s, |
| const double | t0, | ||
| const double | t1 | ||
| ) | const |
Definition at line 3955 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::intMRR2eeeeus2 | ( | const double | s, |
| const double | t0, | ||
| const double | t1 | ||
| ) | const |
Definition at line 3998 of file StandardModel/src/StandardModel.cpp.
|
inline |
A method to retrieve the model flag NoApproximateGammaZ.
See StandardModelFlags for detail.
Definition at line 691 of file StandardModel.h.
|
inline |
A method to retrieve the model flag WithoutNonUniversalVC.
See StandardModelFlags for detail.
Definition at line 678 of file StandardModel.h.
|
inline |
A get method to retrieve the success status of the Standard Model update and matching.
Definition at line 3429 of file StandardModel.h.
|
virtual |
The effective leptonic neutral-current coupling \(\kappa_Z^l\) in the SM.
This function collects the radiative corrections to \(\kappa_Z^l\) computed via EWSMOneLoopEW, EWSMTwoLoopQCD, EWSMTwoLoopEW, EWSMThreeLoopQCD, EWSMThreeLoopEW2QCD and EWSMThreeLoopEW classes. The real part is computed with the function resumKappaZ(), while only the one-loop contribution is kept in the imaginary part.
As a part of the two-loop EW contribution, a correction associated with the product of the imaginary part of \(\Delta\alpha\) and that of \(\Pi_{Z\gamma}\) is included [Bardin:1999ak], [Bardin:1999yd] :
\begin{eqnarray} \Delta \kappa_Z^l = - \frac{1}{s_W^2}\left( \frac{\alpha(M_Z^2)}{4\pi} \right)^2 {\rm Im}\,\overline{\Pi}_{\gamma\gamma}^{\rm fer}(M_Z^2)\,\, {\rm Im}\,\overline{\Pi}_{Z\gamma}^{\rm fer}(M_Z^2) = \frac{35\alpha^2(M_Z^2)}{18 s_W^2}\, \left( 1 - \frac{8}{3}\, {\rm Re}(\kappa_Z^l) s_W^2 \right). \end{eqnarray}
| [in] | f | a lepton or quark |
Reimplemented in NPbase, and NPEpsilons.
Definition at line 1659 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 6168 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 6579 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 6989 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 6994 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 7491 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9657 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9662 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9667 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9615 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9628 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 9641 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 7988 of file StandardModel/src/StandardModel.cpp.
|
virtual |
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 4825 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 4614 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Definition at line 4094 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 5036 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 4099 of file StandardModel/src/StandardModel.cpp.
|
virtual |
Reimplemented in NPSTUVWXY.
Definition at line 4356 of file StandardModel/src/StandardModel.cpp.
|
inlineprotected |
Definition at line 3565 of file StandardModel.h.
| const double StandardModel::MLL2eeff | ( | const Particle | f, |
| const double | s, | ||
| const double | t | ||
| ) | const |
Definition at line 3812 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::MLR2eeff | ( | const Particle | f, |
| const double | s | ||
| ) | const |
Definition at line 3709 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::MRL2eeff | ( | const Particle | f, |
| const double | s | ||
| ) | const |
Definition at line 3760 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::MRR2eeff | ( | const Particle | f, |
| const double | s, | ||
| const double | t | ||
| ) | const |
Definition at line 3864 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The SM prediction for the \(W\)-boson mass in the on-shell scheme, \(M_{W,\mathrm{SM}}\).
When the model flag Mw of StandardModel is set to APPROXIMATEFORMULA, the current function uses the two-loop approximate formula in EWSMApproximateFormulae::Mw(), which includes the full two-loop EW contribution of \({\cal O}(\alpha^2)\) as well as the leading \({\cal O}(G_\mu^2\alpha_s m_t^4)\) and \({\cal O}(G_\mu^3m_t^6)\) contributions.
When the model flag Mw is not set to APPROXIMATEFORMULA, the \(W\)-boson mass is computed from \(\Delta r(M_W)\) with an iterative procedure. The target accuracy of the iterative calculation is specified with the constant Mw_error. This function calls resumMw(), in which \(M_W\) is computed with a given \(\Delta r\), equivalently with \(\Delta\rho\) and \(\Delta r_{\mathrm{rem}}\)
Reimplemented in GeorgiMachacek, NPbase, NPEpsilons, NPEpsilons_pureNP, NPSMEFTd6, NPSMEFTd6General, NPZbbbar, SUSY, and THDMW.
Definition at line 1025 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::Mw_tree | ( | ) | const |
The tree-level mass of the \(W\) boson, \(M_W^{\mathrm{tree}}\).
Definition at line 1003 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::MwbarFromMw | ( | const double | Mw | ) | const |
A method to convert the \(W\)-boson mass in the experimental/running-width scheme to that in the complex-pole/fixed-width scheme.
The mass parameter \(\overline{M}_W\) in the complex-pole/fixed-width scheme [Bardin:1988xt] is given by
\[ \overline{M}_{W} = M_{W} - \frac{\Gamma_{W}^2}{2M_{W}}\,, \]
where \(M_W\) and \(\Gamma_{W}\) are the mass and width of the \(W\) boson in the experimental/running-width scheme:
\[ \Gamma_W = \frac{3G_\mu M_W^3}{2\sqrt{2}\pi} \left( 1 + \frac{2\alpha_s(M_W^2)}{3\pi} \right)\,. \]
| [in] | Mw | the \(W\)-boson mass in the experimental/running-width scheme |
Definition at line 1210 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::MwFromMwbar | ( | const double | Mwbar | ) | const |
A method to convert the \(W\)-boson mass in the complex-pole/fixed-width scheme to that in the experimental/running-width scheme.
The experimental mass \(M_W\) is derived
\[ M_W = \overline{M}_W + \frac{\Gamma_{W}^2}{2\overline{M}_{W}}\,, \]
where \(\overline{M}_W\) is the mass parameter in the complex-pole/fixed-width scheme [Bardin:1988xt], and \(\Gamma_{W}\) is the \(W\)-boson width in the experimental/running-width scheme:
\[ \Gamma_W = \frac{3G_\mu M_W^3}{2\sqrt{2}\pi} \left( 1 + \frac{2\alpha_s(M_W^2)}{3\pi} \right) \approx \frac{3G_\mu \overline{M}_W^3}{2\sqrt{2}\pi} \left( 1 + \frac{2\alpha_s(\overline{M}_W^2)}{3\pi} \right)\,. \]
| [in] | Mwbar | the \(W\)-boson mass in the complex-pole/fixed-width scheme |
Definition at line 1219 of file StandardModel/src/StandardModel.cpp.
| double StandardModel::Mzbar | ( | ) | const |
The \(Z\)-boson mass \(\overline{M}_Z\) in the complex-pole/fixed-width scheme.
The mass parameter \(\overline{M}_Z\) in the complex-pole/fixed-width scheme [Bardin:1988xt] is given by
\[ \overline{M}_{Z} = M_{Z} - \frac{\Gamma_{Z}^2}{2M_{Z}}\,, \]
where \(M_Z\) and \(\Gamma_{Z}\) are the mass and width of the \(Z\) boson in the experimental/running-width scheme:
\begin{align} \Gamma(Z\to f\bar{f}) = \frac{G_\mu M_Z^3}{24\sqrt{2}\pi} \left[ \left( \frac{v_f}{a_f} \right)^2 + 1 \right] \times \left\{ \begin{array}{ll} 1 & \mathrm{for}\quad f=\ell\,, \\[2mm] \displaystyle N_c \left( 1 + \frac{\alpha_s(M_Z^2)}{\pi} \right) & \mathrm{for}\quad f=q \end{array} \right. \end{align}
with \(v_f/a_f=1-4|Q_f|s_{W,\mathrm{tree}}^2\).
Definition at line 1193 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The number of neutrinos obtained indirectly from the measurements at the Z pole, \(N_{\nu}\).
\(N_{\nu}\) is calculated with
\[ N_{\nu} = \frac{\Gamma_\ell}{\Gamma_{\nu}}\left(\sqrt{\frac{12\pi R_\ell}{M_Z^2 \sigma_\mathrm{had}^0}}-R_\ell - 3\right)\,. \]
Reimplemented in NPbase.
Definition at line 1562 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The post-update method for StandardModel.
This method runs all the procedures that are need to be executed after the model is successfully updated. This includes
Reimplemented from QCD.
Reimplemented in FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, HiggsChiral, HiggsKigen, NPd6SILH, NPEpsilons, NPSMEFTd6, NPSMEFTd6General, NPSMEFTd6MFV, NPSMEFTd6U2, NPSMEFTd6U2qU1le, NPSMEFTd6U3, NPZbbbar, NPZbbbarLinearized, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 243 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The pre-update method for StandardModel.
This method initializes the internal flags requireCKM, requireYe and requireYn, and calls QCD::PreUpdate(), before updating the model parameters with the method Update().
Reimplemented from QCD.
Reimplemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPSMEFTd6General, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 216 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the electron's weak charge.
| [in] | q2 | the \(Q^2\) at which the weak charge is measured |
| [in] | y |
Definition at line 2671 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the neutron weak charge: Qwn.
Follows J.Erler,A.Kurylov,M.J.Ramsey-Musolf hep-ph/0302149.
Definition at line 2895 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the proton weak charge: Qwp.
Follows J.Erler,A.Kurylov,M.J.Ramsey-Musolf hep-ph/0302149.
Definition at line 2787 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The ratio \(R_\ell^0=\Gamma(Z\to {\rm hadrons})/\Gamma(Z\to \ell^+ \ell^-)\).
When checkNPZff_linearized() returns true and the model flag NoApproximateGammaZ of StandardModel is set to false, this function uses the two-loop approximate formula of \(R_\ell^0\) via EWSMApproximateFormulae::X_full_2_loop(). Otherwise, \(R_\ell^0\) is calculated with
\[ R_\ell^0 = \frac{\Gamma_h}{\Gamma_\ell}\,. \]
, where \(\ell\) denotes a charged lepton.
| [in] | f | a lepton or quark |
Reimplemented in NPbase, NPSMEFTd6General, NPZbbbar, and NPEpsilons.
Definition at line 1485 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The ratio of the invisible and leptonic (electron) decay widths of the \(Z\) boson, \(R_{inv}\).
\(R_{inv}\) is calculated with
\[ R_{inv} = \frac{\Gamma_{inv}}{\Gamma_e}\,. \]
,
Reimplemented in NPbase.
Definition at line 1556 of file StandardModel/src/StandardModel.cpp.
|
protected |
The radiator factor associated with the final-state QED and QCD corrections to the the axial-vector-current interactions, \(R_A^q(M_Z^2)\).
See [Chetyrkin:1994js], [Bardin:1999ak], [Bardin:1999yd], [Baikov:2012er] and references therein.
| [in] | q | name of a quark (see QCD::quark) |
Definition at line 2277 of file StandardModel/src/StandardModel.cpp.
|
protected |
A method to compute the real part of the effetvive coupling \(\kappa_Z^f\) from \(\Delta\rho\), \(\delta\rho_{\rm rem}^{f}\) and \(\Delta r_{\mathrm{rem}}\).
This function computes \(\kappa_Z^f\) without or with resummation of \(\Delta\rho\), depending on the model flag KappaZ of StandardModel:
where the OMS-I, INTERMEDIATE and OMS-II schemes are adopted in ZFITTER [Bardin:1999yd] (see also [Degrassi:1996mg], [Degrassi:1996ps], [Degrassi:1999jd], [Bardin:1999ak]), and used for making comparisons to the outputs of ZFITTER. In all the cases, the two-loop EW corrections are calculated in the large- \(m_t\) expansion.
| [in] | DeltaRho | Array of \(\Delta\rho\) |
| [in] | deltaKappa_rem | Array of \(\delta\kappa_{\rm rem}^{f}\) |
| [in] | DeltaRbar_rem | Array of \(\Delta \bar{r}_{\rm rem}\) |
| [in] | bool_Zbb | true for \(Zb\bar{b}\) |
Definition at line 2042 of file StandardModel/src/StandardModel.cpp.
|
protected |
A method to compute the \(W\)-boson mass from \(\Delta\rho\) and \(\Delta r_{\mathrm{rem}}\).
This function computes the \(W\)-boson mass without or with resummation of \(\Delta r\), depending on the model flag Mw of StandardModel:
where the OMS-I, INTERMEDIATE and OMS-II schemes are adopted in ZFITTER [Bardin:1999yd] (see also [Degrassi:1996mg], [Degrassi:1996ps], [Degrassi:1999jd], [Bardin:1999ak]), and used for making comparisons to the outputs of ZFITTER. The full two-loop EW contribution is included in the case of "NORESUM", while the large- \(m_t\) expansion for the two-loop contribution is adopted in the other cases.
In the case of "NORESUM", the two-loop EW contribution to \(\Delta r\) is calculated via the function EWSMApproximateFormulae::DeltaR_TwoLoopEW_rem(), given in the complex-pole/fixed-width scheme. The \(W\)-boson mass in the complex-pole/fixed-width scheme, obtained from \(\Delta r\), is converted into the one in the experimental/running-width scheme with the function MwFromMwbar().
| [in] | Mw_i | the \(W\)-boson mass |
| [in] | DeltaRho | Array of \(\Delta\rho\) |
| [in] | DeltaR_rem | Array of \(\Delta r_{\mathrm{rem}}\) |
Definition at line 1876 of file StandardModel/src/StandardModel.cpp.
|
protected |
A method to compute the real part of the effective coupling \(\rho_Z^f\) from \(\Delta\rho\), \(\delta\rho_{\rm rem}^{f}\) and \(\Delta r_{\mathrm{rem}}\).
This function computes \(\rho_Z^f\) without or with resummation of \(\Delta\rho\), depending on the model flag RhoZ of StandardModel:
where the OMS-I, INTERMEDIATE and OMS-II schemes are adopted in ZFITTER [Bardin:1999yd] (see also [Degrassi:1996mg], [Degrassi:1996ps], [Degrassi:1999jd], [Bardin:1999ak]), and used for making comparisons to the outputs of ZFITTER. In all the cases, the two-loop EW corrections are calculated in the large- \(m_t\) expansion.
| [in] | DeltaRho | Array of \(\Delta\rho\) |
| [in] | deltaRho_rem | Array of \(\delta\rho_{\rm rem}^{f}\) |
| [in] | DeltaRbar_rem | Array of \(\Delta \bar{r}_{\rm rem}\) |
| [in] | bool_Zbb | true for \(Zb\bar{b}\) |
Definition at line 1963 of file StandardModel/src/StandardModel.cpp.
EW radiative corrections to the width of \(W \to f_i \bar{f}_j\), denoted as \(\rho^W_{ij}\).
| [in] | fi | a lepton or quark |
| [in] | fj | a lepton or quark |
Definition at line 1240 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective leptonic neutral-current coupling \(\rho_Z^l\) in the SM.
This function collects the radiative corrections to \(\rho_Z^l\) computed via EWSMOneLoopEW, EWSMTwoLoopQCD, EWSMTwoLoopEW, EWSMThreeLoopQCD, EWSMThreeLoopEW2QCD and EWSMThreeLoopEW classes. The real part is computed with the function resumRhoZ(), while only the one-loop contribution is kept in the imaginary part.
| [in] | f | a lepton or quark |
Reimplemented in NPbase, and NPEpsilons.
Definition at line 1594 of file StandardModel/src/StandardModel.cpp.
|
virtual |
|
protected |
The singlet vector corrections to the hadronic \(Z\)-boson width, denoted as \(R_V^h\).
In addition to the final-state corrections represented by the radiator factors \(R_V^q(M_Z^2)\) and \(R_A^q(M_Z^2)\), there exist singlet vector corrections to the total hadronic width [Chetyrkin:1994js], [Baikov:2012er], which is much smaller than the other corrections.
The assignment of the singlet vector corrections to the partial widths is ambiguous [Bardin:1997xq]. See Gamma_had() for our prescription.
Definition at line 2414 of file StandardModel/src/StandardModel.cpp.
|
protected |
The radiator factor associated with the final-state QED and QCD corrections to the the vector-current interactions, \(R_V^q(M_Z^2)\).
See [Chetyrkin:1994js], [Bardin:1999ak], [Bardin:1999yd] and references therein.
| [in] | q | name of a quark (see QCD::quark) |
Definition at line 2157 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The ratio \(R_{W,c)=\Gamma(W\to c + X)/\Gamma(W\to had)\).
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 1328 of file StandardModel/src/StandardModel.cpp.
The lepton universality ratio \(R_{W,l_i/l_j)=\Gamma(W\to l_i \nu_i)/\Gamma(W\to l_j \nu_j)\).
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 1298 of file StandardModel/src/StandardModel.cpp.
The lepton universality ratio \(R_{Z,l_i/l_j)=\Gamma(Z\to l_i^+ l_i^-)/\Gamma(Z\to l_j^+ l_j^-)\).
Reimplemented in NPbase, NPSMEFTd6, and NPSMEFTd6General.
Definition at line 1453 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::s02 | ( | ) | const |
The square of the sine of the weak mixing angle \(s_0^2\) defined without weak radiative corrections.
The quantity \(s_0^2\) is defined through
\[ s_0^2 c_0^2 = \frac{\pi\,\alpha(M_Z^2)}{\sqrt{2}\,G_\mu M_Z^2} \ \ \rightarrow\ \ s_0^2 = \frac{1}{2} \left(1 - \sqrt{1 - \frac{4\pi \alpha(M_Z^2)}{\sqrt{2}\,G_\mu M_Z^2}}\ \right)\,. \]
See [Altarelli:1990zd] and [Altarelli:1991fk].
Definition at line 1011 of file StandardModel/src/StandardModel.cpp.
|
inlineprotected |
A method to convert a given scheme name in string form into a floating-point number with double precision.
This method is used in EWSM::checkSMparams() for caching the schemes used in computing \(M_W\), \(\rho_Z^f\) and \(\kappa_Z^f\).
| [in] | scheme | scheme name that is used in computing \(M_W\), \(\rho_Z^f\) or \(\kappa_Z^f\) |
Definition at line 3531 of file StandardModel.h.
|
inline |
A set method to change the CKM matrix.
| [in] | CKMMatrix | a reference to the new CKM matrix |
Definition at line 3360 of file StandardModel.h.
|
virtual |
A method to set a flag of StandardModel.
| [in] | name | name of a model flag |
| [in] | value | the boolean to be assigned to the flag specified by name |
Reimplemented from QCD.
Reimplemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, HiggsChiral, HiggsKigen, NPbase, NPd6SILH, NPEpsilons, NPSMEFTd6, NPSMEFTd6General, THDM, GeorgiMachacek, LeftRightSymmetricModel, NPSMEFT6dtopquark, and SUSY.
Definition at line 449 of file StandardModel/src/StandardModel.cpp.
|
inline |
A set method to change the model flag CacheInStandardModel of StandardModel.
Setting CacheInStandardModel to false, the caching methods defined in the current class are not employed in numerical computations. The flag is set to true in the constructor EWSM() by default.
| [in] | FlagCacheInStandardModel | true (false) if the caching methods are turned on (off); |
Definition at line 742 of file StandardModel.h.
|
inline |
Definition at line 696 of file StandardModel.h.
|
inline |
Definition at line 3324 of file StandardModel.h.
|
inline |
Definition at line 3330 of file StandardModel.h.
|
virtual |
A method to set a flag of StandardModel.
| [in] | name | name of a model flag |
| [in] | value | the string to be assigned to the flag specified by name |
Reimplemented from QCD.
Reimplemented in LeftRightSymmetricModel, NPSMEFTd6General, THDM, and THDMW.
Definition at line 514 of file StandardModel/src/StandardModel.cpp.
|
protectedvirtual |
A method to set the value of a parameter of StandardModel.
| [in] | name | name of a model parameter |
| [in] | value | the value to be assigned to the parameter specified by name |
Reimplemented from QCD.
Reimplemented in NPDF2, HiggsChiral, HiggsKigen, NPd6SILH, NPEpsilons, NPEpsilons_pureNP, NPHiggs, NPSMEFT6dtopquark, NPSMEFTd6, NPSMEFTd6MFV, NPSMEFTd6U2, NPSMEFTd6U2qU1le, NPSMEFTd6U3, NPSTU, NPSTUVWXY, NPSTUZbbbarLR, NPZbbbar, NPZbbbarLinearized, SigmaBR, SUSY, THDM, CMFV, FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, pMSSM, SUSYMassInsertion, and THDMW.
Definition at line 280 of file StandardModel/src/StandardModel.cpp.
|
inline |
A set method to change the value of requireCKM.
| [in] | requireCKM | the new value for requireCKM |
Definition at line 3351 of file StandardModel.h.
|
inline |
A set method to change the success status of the Standard Model update and matching.
| [in] | success | the new value for SMSuccess |
Definition at line 3438 of file StandardModel.h.
|
inline |
A set method to set the Yukawa matrix of the down-type quarks, \(Y_d\).
| [in] | Yd | the Yukawa matrix to be set |
Definition at line 3400 of file StandardModel.h.
|
inline |
A set method to set the Yukawa matrix of the charged leptons, \(Y_e\).
| [in] | Ye | the Yukawa matrix to be set |
Definition at line 3420 of file StandardModel.h.
|
inline |
A set method to set the Yukawa matrix of the up-type quarks, \(Y_u\).
| [in] | Yu | the Yukawa matrix to be set |
Definition at line 3380 of file StandardModel.h.
|
virtual |
The hadronic cross section for \(e^+e^- \to Z \to \mathrm{hadrons}\) at the \(Z\)-pole, \(\sigma_h^0\).
When checkNPZff_linearized() returns true and the model flag NoApproximateGammaZ of StandardModel is set to false, this function uses the two-loop approximate formula of \(\sigma_h^0\) via EWSMApproximateFormulae::X_full_2_loop(). Otherwise, the hadronic cross section is calculated with
\[ \sigma_h^0 = \frac{12\pi}{M_Z^2}\frac{\Gamma_e\Gamma_h}{\Gamma_Z^2}\,. \]
Reimplemented in NPbase, NPEpsilons, NPSMEFTd6General, and NPZbbbar.
Definition at line 1471 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8012 of file StandardModel/src/StandardModel.cpp.
|
protected |
Definition at line 8024 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\sigma(e^+ e^- \to e^+ e^- H)\) in the Standard Model.
Currently, only at tree level. From https://arxiv.org/pdf/hep-ph/9605437
Definition at line 3357 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\sigma(e^+ e^- \to \nu \bar{\nu} H)\) in the Standard Model.
Currently, only at tree level. From https://arxiv.org/pdf/hep-ph/9605437
Definition at line 3350 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The \(\sigma(e^+ e^- \to Z H)\) in the Standard Model.
Currently, only at tree level. From https://arxiv.org/pdf/hep-ph/9605437
Definition at line 3328 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective weak mixing angle \(\sin^2\theta_{\rm eff}^{\,\ell}\) for \(Z\ell\bar{\ell}\) at the the \(Z\)-mass scale.
When checkNPZff_linearized() returns true and the model flag KappaZ of StandardModel is set to APPROXIMATEFORMULA, this function uses the two-loop approximate formula of \(\sin^2\theta_{\rm eff}^{\,\ell}\) via EWSMApproximateFormulae::sin2thetaEff(). Otherwise, the effective weak mixing angle is calculated from the coupling \(\kappa_Z^\ell\):
\[ \sin^2\theta_{\rm eff}^{\,\ell} = {\rm Re}(\kappa_Z^\ell)\,s_W^2\,. \]
| [in] | f | a lepton or quark |
Reimplemented in NPbase, NPZbbbar, and NPEpsilons.
Definition at line 1357 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::sW2 | ( | ) | const |
Definition at line 1098 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The square of the sine of the weak mixing angle in the on-shell scheme, denoted as \(s_W^2\).
\[ s_W^2=\sin^2{\theta_W}=1-\frac{M_W^2}{M_Z^2}. \]
Definition at line 1093 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::sW2_MSbar_Approx | ( | ) | const |
The (approximated formula for the) square of the sine of the weak mixing angle in the MSbar scheme, denoted as \(\hat{s}_{W}^2\). See: PDG 22, R.L. Workman et al. (Particle Data Group), Prog. Theor. Exp. Phys. 2022, 083C01 (2022)
Definition at line 1103 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::sW2_ND | ( | ) | const |
The square of the sine of the weak mixing angle in the MSbar-ND scheme (w/o decoupling $\alpha\ln(m_t/M_Z)$ terms), denoted as \(\hat{s}_{ND}^2\). See: PDG 22, R.L. Workman et al. (Particle Data Group), Prog. Theor. Exp. Phys. 2022, 083C01 (2022) (eq. 10.13a/10.13b)
Definition at line 1109 of file StandardModel/src/StandardModel.cpp.
|
protected |
Top-mass corrections to the \(Zb\bar{b}\) vertex, denoted by \(\tau_b\).
The large top-quark mass gives important corrections to the EW observables through the gauge-boson self-energies, i.e., \(\Delta\rho\), and through the \(Zb\bar{b}\) vertex. The latter contribution is parameterised by the quantity \(\tau_b\):
\[ \tau_{b} = -2\, X_t^{G_\mu} \left[ 1 - \frac{\pi}{3}\alpha_s(M^2_t) + X_t^{G_\mu} \tau^{(2)} \left( \frac{M_t^2}{m_h^2} \right) \right], \]
where the \(O(G_\mu\alpha_s m_t^2)\) term was calculated in [Fleischer:1992fq], [Buchalla:1992zm], [Degrassi:1993ij], [Chetyrkin:1993jp], and the \(O(G_\mu^2 m_t^4)\) term can be found in [Barbieri:1992nz], [Barbieri:1992dq], [Fleischer:1993ub], [Fleischer:1994cb].
Definition at line 2119 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the LFU ratio \(g_\mu/ g_e \).
Definition at line 3171 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the LFU ratio \(g_\tau/ g_e \).
Definition at line 3217 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the LFU ratio \(g_\tau/ g_\mu \).
Definition at line 3194 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the LFU ratio \(\left(g_\tau/ g_\mu\right)_K \).
Definition at line 3248 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The computation of the LFU ratio \(\left(g_\tau/ g_\mu\right)_\pi \).
Definition at line 3241 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective neutrino nucleon LH parameter: ThetaLnuN.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3034 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The effective neutrino nucleon RH parameter: ThetaRnuN.
Follows the corresponding semianalytical expression in EWSMApproximateFormulae.
Definition at line 3048 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::tovers2 | ( | const double | cosmin, |
| const double | cosmax | ||
| ) | const |
Definition at line 3918 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::uovers2 | ( | const double | cosmin, |
| const double | cosmax | ||
| ) | const |
Definition at line 3922 of file StandardModel/src/StandardModel.cpp.
|
virtual |
The update method for StandardModel.
This method updates all the model parameters with given DPars.
| [in] | DPars | a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant) |
Reimplemented from QCD.
Reimplemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPbase, pMSSM, SUSY, SUSYMassInsertion, THDM, and THDMW.
Definition at line 227 of file StandardModel/src/StandardModel.cpp.
| const double StandardModel::v | ( | ) | const |
The Higgs vacuum expectation value.
\[ v = \left(\frac{1}{\sqrt{2} G_\mu}\right)^{1/2}, \]
where \(G_\mu\) is the Fermi constant, measured through muon decays.
Definition at line 995 of file StandardModel/src/StandardModel.cpp.
|
protected |
The CKM parameter \(A\) in the Wolfenstein parameterization.
Definition at line 3496 of file StandardModel.h.
|
protected |
The fine-structure constant \(\alpha\).
Definition at line 3481 of file StandardModel.h.
|
mutableprivate |
Cache for \(\alpha_e\).
Definition at line 4114 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
mutableprivate |
Cache for \(\alpha_s\).
Definition at line 4113 of file StandardModel.h.
|
protected |
The strong coupling constant at the Z-boson mass, \(\alpha_s(M_Z)\).
Definition at line 3477 of file StandardModel.h.
|
mutableprivate |
GSL integral variable
Definition at line 4099 of file StandardModel.h.
|
mutableprotected |
Definition at line 3763 of file StandardModel.h.
|
mutableprotected |
Definition at line 3764 of file StandardModel.h.
|
staticprivate |
Defines the depth of the cache.
Definition at line 4112 of file StandardModel.h.
|
protected |
The five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\). (Non-input parameter)
Definition at line 3508 of file StandardModel.h.
|
protected |
The five-flavour hadronic contribution to the electromagnetic coupling, \(\Delta\alpha_{\mathrm{had}}^{(5)}(M_Z^2)\), used as input for FlagMWinput = FALSE.
Definition at line 3482 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\Gamma_W_{l\nu}\), denoted as \(\delta\,\Gamma_W_{l\nu}\).
Definition at line 3493 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\Gamma_W_{qq}\), denoted as \(\delta\,\Gamma_W_{qq}\).
Definition at line 3494 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\Gamma_Z\), denoted as \(\delta\,\Gamma_Z\), in GeV.
Definition at line 3488 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(M_W\), denoted as \(\delta\,M_W\), in GeV.
Definition at line 3484 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(R_b^0\), denoted as \(\delta\,R_b^0\).
Definition at line 3492 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(R_c^0\), denoted as \(\delta\,R_c^0\).
Definition at line 3491 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(R_l^0\), denoted as \(\delta\,R_l^0\).
Definition at line 3490 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\sigma_{Hadron}^0\), denoted as \(\delta\,\sigma_{Hadron}^0\) in nb.
Definition at line 3489 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{b}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{b}\).
Definition at line 3487 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{\rm lept}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{\rm lept}\).
Definition at line 3485 of file StandardModel.h.
|
protected |
The theoretical uncertainty in \(\sin^2\theta_{\rm eff}^{q\not = b,t}\), denoted as \(\delta\sin^2\theta_{\rm eff}^{q\not = b,t}\).
Definition at line 3486 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(\Delta\alpha(M_Z^2)\).
Definition at line 4080 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(\Delta\alpha_{\mathrm{lept}}(M_Z^2)\).
Definition at line 4079 of file StandardModel.h.
|
mutableprivate |
GSL integral variable
Definition at line 4100 of file StandardModel.h.
|
protected |
The CKM parameter \(\bar{\eta}\) in the Wolfenstein parameterization.
Definition at line 3498 of file StandardModel.h.
|
mutableprivate |
GSL integral variable
Definition at line 4101 of file StandardModel.h.
|
protected |
An array of internal flags controlling the inclusions of higher-order corrections.
These flags are prepared for debugging. The flags are initialized in the constructor EWSM().
Definition at line 3519 of file StandardModel.h.
|
private |
A flag for caching (true by default).
Definition at line 4077 of file StandardModel.h.
|
protected |
A boolean for the model flag FixMuwMut.
Definition at line 3753 of file StandardModel.h.
|
private |
A string for the model flag KappaZ.
Definition at line 4065 of file StandardModel.h.
|
protected |
Definition at line 3762 of file StandardModel.h.
|
private |
A string for the model flag Mw.
Definition at line 4063 of file StandardModel.h.
|
private |
A boolean for the model flag MWinput.
Definition at line 4069 of file StandardModel.h.
|
private |
A boolean for the model flag NoApproximateGammaZ.
Definition at line 4062 of file StandardModel.h.
|
private |
A string for the model flag RhoZ.
Definition at line 4064 of file StandardModel.h.
|
private |
A boolean for the model flag SMAux.
Definition at line 4070 of file StandardModel.h.
|
private |
A boolean for the model flag UseVud.
Definition at line 4067 of file StandardModel.h.
|
private |
A boolean for the model flag WithoutNonUniversalVC.
Definition at line 4061 of file StandardModel.h.
|
private |
A boolean for the model flag Wolfenstein.
Definition at line 4066 of file StandardModel.h.
|
protected |
\(\gamma \) used as an input for FlagWolfenstein = FALSE
Definition at line 3503 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(\Gamma_W\).
Definition at line 4082 of file StandardModel.h.
|
static |
Definition at line 558 of file StandardModel.h.
|
protected |
The Fermi constant \(G_\mu\) in \({\rm GeV}^{-2}\).
Definition at line 3480 of file StandardModel.h.
|
private |
Definition at line 4105 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(\kappa_Z^l\).
Definition at line 4084 of file StandardModel.h.
|
protected |
The CKM parameter \(\lambda\) in the Wolfenstein parameterization.
Definition at line 3495 of file StandardModel.h.
|
protected |
An array of Particle objects for the leptons.
Definition at line 3464 of file StandardModel.h.
|
protected |
The Higgs mass \(m_h\) in GeV.
Definition at line 3483 of file StandardModel.h.
|
protected |
A matching scale \(\mu_W\) around the weak scale in GeV.
Definition at line 3504 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(M_W\).
Definition at line 4081 of file StandardModel.h.
|
static |
The target accuracy of the iterative calculation of the \(W\)-boson mass in units of GeV.
Definition at line 564 of file StandardModel.h.
|
protected |
The mass of the \(W\) boson in GeV used as input for FlagMWinput = TRUE.
Definition at line 3479 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMApproximateFormulae.
Definition at line 4055 of file StandardModel.h.
|
protected |
An object of type CKM.
Definition at line 3465 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMcache.
Definition at line 4048 of file StandardModel.h.
|
private |
A pointer to an object of the type LeptonFlavour.
Definition at line 4056 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMOneLoopEW.
Definition at line 4049 of file StandardModel.h.
|
protected |
Definition at line 3466 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMThreeLoopEW.
Definition at line 4054 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMThreeLoopEW2QCD.
Definition at line 4053 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMThreeLoopQCD.
Definition at line 4051 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMTwoFermionsLEP2.
Definition at line 4058 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMTwoLoopEW.
Definition at line 4052 of file StandardModel.h.
|
private |
A pointer to an object of type EWSMTwoLoopQCD.
Definition at line 4050 of file StandardModel.h.
|
protected |
The mass of the \(Z\) boson in GeV.
Definition at line 3478 of file StandardModel.h.
|
static |
The number of the model parameters in StandardModel.
Definition at line 552 of file StandardModel.h.
|
static |
The number of the SM parameters that are relevant to the EW precision observables.
This constant is used for the cashing method.
Definition at line 2132 of file StandardModel.h.
|
mutableprivate |
Definition at line 4115 of file StandardModel.h.
|
protected |
An internal flag to control whether the CKM matrix has to be recomputed.
Definition at line 3748 of file StandardModel.h.
|
protected |
An internal flag to control whether the charged-lepton Yukawa matrix has to be recomputed.
Definition at line 3749 of file StandardModel.h.
|
protected |
An internal flag to control whether the neutrino Yukawa matrix has to be recomputed.
Definition at line 3750 of file StandardModel.h.
|
protected |
The CKM parameter \(\bar{\rho}\) in the Wolfenstein parameterization.
Definition at line 3497 of file StandardModel.h.
|
mutableprivate |
A cache of the value of \(\rho_Z^l\).
Definition at line 4083 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
protected |
Definition at line 3505 of file StandardModel.h.
|
protected |
An object of type Flavour.
Definition at line 3752 of file StandardModel.h.
|
mutableprotected |
An object of type Matching.
Definition at line 3469 of file StandardModel.h.
|
mutableprivate |
Definition at line 4078 of file StandardModel.h.
|
mutableprivate |
Definition at line 4095 of file StandardModel.h.
|
mutableprivate |
A boolean for the success of the Standard Model update and matching.
Definition at line 4072 of file StandardModel.h.
|
static |
A string array containing the labels of the model parameters in StandardModel.
Definition at line 556 of file StandardModel.h.
|
mutableprivate |
Definition at line 4086 of file StandardModel.h.
|
mutableprivate |
Definition at line 4085 of file StandardModel.h.
|
mutableprivate |
Definition at line 4088 of file StandardModel.h.
|
mutableprivate |
Definition at line 4090 of file StandardModel.h.
|
mutableprivate |
Definition at line 4087 of file StandardModel.h.
|
mutableprivate |
Definition at line 4089 of file StandardModel.h.
|
protected |
\(\vert V_{cb} \vert \) used as an input for FlagWolfenstein = FALSE
Definition at line 3501 of file StandardModel.h.
|
protected |
\(\vert V_{ub} \vert \) used as an input for FlagWolfenstein = FALSE
Definition at line 3502 of file StandardModel.h.
|
protected |
\(\vert V_{ud} \vert \) used as an input for FlagWolfenstein = FALSE and FlagUseVud = TRUE
Definition at line 3500 of file StandardModel.h.
|
protected |
\(\vert V_{us} \vert \) used as an input for FlagWolfenstein = FALSE
Definition at line 3499 of file StandardModel.h.
|
private |
GSL integral variable
Definition at line 4102 of file StandardModel.h.
|
protected |
The Yukawa matrix of the down-type quarks.
Definition at line 3471 of file StandardModel.h.
|
protected |
The Yukawa matrix of the charged leptons.
Definition at line 3473 of file StandardModel.h.
|
protected |
The Yukawa matrix of the neutrinos.
Definition at line 3472 of file StandardModel.h.
|
protected |
The Yukawa matrix of the up-type quarks.
Definition at line 3470 of file StandardModel.h.
1.9.2
