A class for the template of models. More...

#include <Model.h>

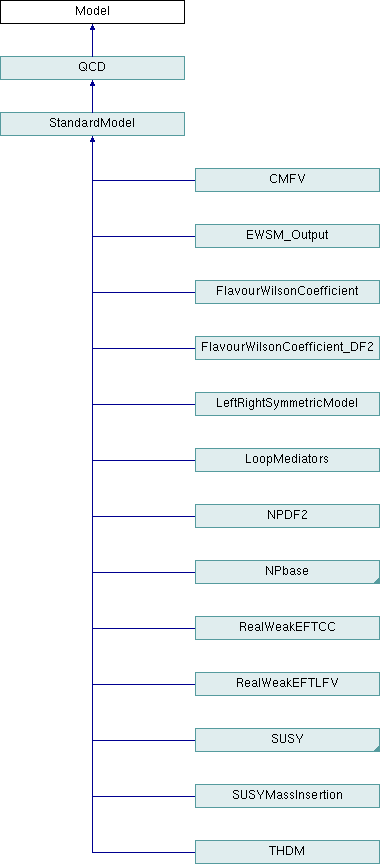

Inheritance diagram for Model:

Detailed Description

A class for the template of models.

Author: HEPfit Collaboration

Copyright: GNU General Public License

This template delineates the methods necessary for the construction and updating of a particular model. An example of its use can be found in the StandardModel class.

Definition at line 26 of file Model.h.

Public Member Functions
void	addMissingModelParameter (const std::string &missingParameterName)

virtual bool	CheckFlags () const =0
	A method to check the sanity of the set of model flags. More...

virtual bool	CheckParameters (const std::map< std::string, double > &DPars)=0
	A method to check if all the mandatory parameters for the model have been provided in model initialization. More...

std::vector< std::string >	getmissingModelParameters ()

unsigned int	getMissingModelParametersCount ()

std::string	getModelName () const
	A method to fetch the name of the model. More...

const double &	getModelParam (std::string name) const

virtual bool	Init (const std::map< std::string, double > &DPars)=0
	A method to initialize the model parameters. More...

bool	isModelFWC_DF2 () const

bool	isModelGeneralTHDM () const

bool	isModelGeorgiMachacek () const

bool	IsModelInitialized () const
	A method to check if the model is initialized. More...

bool	isModelLinearized () const

bool	isModelNPquadratic () const

bool	isModelParam (std::string name) const

bool	isModelSUSY () const

bool	isModelTHDM () const

bool	isModelTHDMW () const

bool	IsUpdateError () const
	A method to check if there was any error in the model update process. More...

	Model ()
	The default constructor. More...

virtual bool	PostUpdate ()=0
	The post-update method for the model. More...

virtual bool	PreUpdate ()=0
	The pre-update method for the model. More...

void	raiseMissingModelParameterCount ()

virtual bool	setFlag (const std::string name, const bool value)=0
	A method to set a flag of the model. More...

virtual bool	setFlagStr (const std::string name, const std::string value)=0
	A method to set a flag of the model. More...

void	setModelFWC_DF2 ()

void	setModelGeneralTHDM ()

void	setModelGeorgiMachacek ()

void	setModelInitialized (bool ModelInitialized)
	A set method to fix the failure or success of the initialization of the model. More...

void	setModelLinearized (bool linearized=true)

void	setModelName (const std::string name)
	A method to set the name of the model. More...

void	setModelNPquadratic (bool NPquadratic=true)

void	setModelSUSY ()

void	setModelTHDM ()

void	setModelTHDMW ()

void	setSliced (bool Sliced)

void	setUpdateError (bool UpdateError)
	A set method to fix the update status as success or failure. More...

virtual bool	Update (const std::map< std::string, double > &DPars)=0
	The update method for the model. More...

virtual	~Model ()
	The default destructor. More...

Protected Member Functions
virtual void	setParameter (const std::string name, const double &value)=0
	A method to set the value of a parameter of the model. More...

Protected Attributes
bool	isSliced = false
	A boolean set to true if the current istance is a slice of an extended object. More...

std::map< std::string, std::reference_wrapper< const double > >	ModelParamMap

bool	UpdateError = false
	A boolean set to false if update is successful. More...

Private Attributes
bool	flagFWCDF2model = false
	A flag identifying the model as a FlavourWilsonCoefficient_DF2 model. More...

bool	flagGMmodel = false
	A flag identifying the model as a GeorgiMachacek model. More...

bool	flagGTHDMmodel = false
	A flag identifying the model as a GeneralTHDM model. More...

bool	flagLinearized = false
	A flag to identify models where the NP contribution to Higgs observables is linearized. More...

bool	flagNPquadratic = false

bool	flagSUSYmodel = false
	A flag identifying the model as a SUSY model. More...

bool	flagTHDMmodel = false
	A flag identifying the model as a THDM model. More...

bool	flagTHDMWmodel = false
	A flag identifying the model as a THDMW model. More...

std::vector< std::string >	missingModelParameters

unsigned int	missingModelParametersCount = 0

bool	ModelInitialized = false
	A boolean set to true if the model is successfully initialized. More...

std::string	name
	The name of the model. More...

Constructor & Destructor Documentation

◆ Model()

Model::Model ( )

inline

The default constructor.

Definition at line 32 of file Model.h.

    {
        ModelInitialized = false;
        flagSUSYmodel = false;
        flagLinearized = false;
    };

◆ ~Model()

virtual Model::~Model ( )

inlinevirtual

The default destructor.

Definition at line 42 of file Model.h.

43 {

44 };

Member Function Documentation

◆ addMissingModelParameter()

void Model::addMissingModelParameter ( const std::string & missingParameterName )

inline

Definition at line 250 of file Model.h.

    {
        missingModelParameters.push_back(missingParameterName);
    }

◆ CheckFlags()

virtual bool Model::CheckFlags ( ) const

pure virtual

A method to check the sanity of the set of model flags.

Returns: a boolean that is true if the set of model flags is sane

Implemented in QCD, and StandardModel.

◆ CheckParameters()

virtual bool Model::CheckParameters ( const std::map< std::string, double > & DPars )

pure virtual

A method to check if all the mandatory parameters for the model have been provided in model initialization.

Parameters

[in] DPars a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant)

Returns: a boolean that is true if the execution is successful

Implemented in CMFV, FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, NPDF2, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, HiggsChiral, HiggsKigen, NPEpsilons, NPEpsilons_pureNP, NPHiggs, NPSMEFTd6, NPSTU, NPSTUVWXY, NPSTUZbbbarLR, NPZbbbar, NPZbbbarLinearized, SigmaBR, pMSSM, QCD, StandardModel, SUSY, SUSYMassInsertion, THDM, and THDMW.

◆ getmissingModelParameters()

std::vector< std::string > Model::getmissingModelParameters ( )

inline

Definition at line 255 of file Model.h.

    {
        return missingModelParameters;
    }

◆ getMissingModelParametersCount()

unsigned int Model::getMissingModelParametersCount ( )

inline

Definition at line 265 of file Model.h.

    {
        return missingModelParametersCount;
    }

◆ getModelName()

std::string Model::getModelName ( ) const

inline

A method to fetch the name of the model.

Returns: the name of the model as a string

Definition at line 59 of file Model.h.

    {
        return name;
    }

◆ getModelParam()

const double & Model::getModelParam ( std::string name ) const

inline

Definition at line 168 of file Model.h.

    {
        return ModelParamMap.at(name);
    }

◆ Init()

virtual bool Model::Init ( const std::map< std::string, double > & DPars )

pure virtual

A method to initialize the model parameters.

Parameters

[in] DPars a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant)

Returns: a boolean that is true if the execution is successful

Implemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPSMEFTd6General, pMSSM, QCD, StandardModel, SUSY, SUSYMassInsertion, THDM, and THDMW.

◆ isModelFWC_DF2()

bool Model::isModelFWC_DF2 ( ) const

inline

Definition at line 190 of file Model.h.

                               {
        return flagFWCDF2model;
    }

◆ isModelGeneralTHDM()

bool Model::isModelGeneralTHDM ( ) const

inline

Definition at line 206 of file Model.h.

                                   {
        return flagGTHDMmodel;
    }

◆ isModelGeorgiMachacek()

bool Model::isModelGeorgiMachacek ( ) const

inline

Definition at line 222 of file Model.h.

                                      {
        return flagGMmodel;
    }

◆ IsModelInitialized()

bool Model::IsModelInitialized ( ) const

inline

A method to check if the model is initialized.

Returns: a boolean that is true if the model has been initialized

Definition at line 136 of file Model.h.

    {
        return ModelInitialized;
    }

◆ isModelLinearized()

bool Model::isModelLinearized ( ) const

inline

Definition at line 227 of file Model.h.

                                  {
        return flagLinearized;
    }

◆ isModelNPquadratic()

bool Model::isModelNPquadratic ( ) const

inline

Definition at line 236 of file Model.h.

                                   {
        return flagNPquadratic;
    }

◆ isModelParam()

bool Model::isModelParam ( std::string name ) const

inline

Definition at line 173 of file Model.h.

    {
        return (ModelParamMap.find(name) != ModelParamMap.end());
    }

◆ isModelSUSY()

bool Model::isModelSUSY ( ) const

inline

Definition at line 182 of file Model.h.

                            {
        return flagSUSYmodel;
    }

◆ isModelTHDM()

bool Model::isModelTHDM ( ) const

inline

Definition at line 198 of file Model.h.

                            {
        return flagTHDMmodel;
    }

◆ isModelTHDMW()

bool Model::isModelTHDMW ( ) const

inline

Definition at line 214 of file Model.h.

                             {
        return flagTHDMWmodel;
    }

◆ IsUpdateError()

bool Model::IsUpdateError ( ) const

inline

A method to check if there was any error in the model update process.

Returns: a boolean that is true if the update was not successful

Definition at line 154 of file Model.h.

    {
        return UpdateError;
    }

◆ PostUpdate()

virtual bool Model::PostUpdate ( )

pure virtual

The post-update method for the model.

This method runs all the procedures that are need to be executed after the model is successfully updated. This includes updating any other variable that needs to be updated at this time due to the update of the model parameters

Returns: a boolean that is true if the execution is successful

Implemented in FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, HiggsChiral, HiggsKigen, NPd6SILH, NPEpsilons, NPSMEFTd6, NPSMEFTd6General, NPSMEFTd6U2, NPSMEFTd6U2qU1le, NPSMEFTd6U3, NPZbbbar, NPZbbbarLinearized, pMSSM, QCD, StandardModel, SUSY, SUSYMassInsertion, THDM, and THDMW.

◆ PreUpdate()

virtual bool Model::PreUpdate ( )

pure virtual

The pre-update method for the model.

This method checks if all requisites for the update process of the current model has been completed. Such requisites can be procedures like update of other models or any other procedures that need to be done before the current model can be successfully updated.

Returns: a boolean that is true if the execution is successful

Implemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPSMEFTd6General, pMSSM, QCD, StandardModel, SUSY, SUSYMassInsertion, THDM, and THDMW.

◆ raiseMissingModelParameterCount()

void Model::raiseMissingModelParameterCount ( )

inline

Definition at line 260 of file Model.h.

    {
        missingModelParametersCount++;
    }

◆ setFlag()

virtual bool Model::setFlag	(	const std::string	name,
		const bool	value
	)

pure virtual

A method to set a flag of the model.

Parameters

[in]	name	name of a model flag
[in]	value	the boolean to be assigned to the flag specified by name

Returns: a boolean that is true if the execution is successful

Implemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, HiggsChiral, HiggsKigen, NPbase, NPd6SILH, NPEpsilons, NPSMEFTd6, NPSMEFTd6General, QCD, StandardModel, THDM, GeorgiMachacek, LeftRightSymmetricModel, NPSMEFT6dtopquark, and SUSY.

◆ setFlagStr()

virtual bool Model::setFlagStr	(	const std::string	name,
		const std::string	value
	)

pure virtual

A method to set a flag of the model.

Parameters

[in]	name	name of a model flag
[in]	value	the string to be assigned to the flag specified by name

Returns: a boolean that is true if the execution is successful

Implemented in LeftRightSymmetricModel, NPSMEFTd6General, QCD, StandardModel, THDM, and THDMW.

◆ setModelFWC_DF2()

void Model::setModelFWC_DF2 ( )

inline

Definition at line 186 of file Model.h.

                          {
        flagFWCDF2model = true;
    }

◆ setModelGeneralTHDM()

void Model::setModelGeneralTHDM ( )

inline

Definition at line 202 of file Model.h.

                              {
        flagGTHDMmodel = true;
    }

◆ setModelGeorgiMachacek()

void Model::setModelGeorgiMachacek ( )

inline

Definition at line 218 of file Model.h.

                                 {
        flagGMmodel = true;
    }

◆ setModelInitialized()

void Model::setModelInitialized ( bool ModelInitialized )

inline

A set method to fix the failure or success of the initialization of the model.

Parameters

[in] ModelInitialized true if the model has been successfully initialized

Definition at line 145 of file Model.h.

    {
        this->ModelInitialized = ModelInitialized;
    }

◆ setModelLinearized()

void Model::setModelLinearized ( bool linearized = true )

inline

Definition at line 231 of file Model.h.

                                                   {
        flagLinearized = linearized;
    }

◆ setModelName()

void Model::setModelName ( const std::string name )

inline

A method to set the name of the model.

Parameters

[in] name the name of the model

Definition at line 50 of file Model.h.

    {
        this->name = name;
    }

◆ setModelNPquadratic()

void Model::setModelNPquadratic ( bool NPquadratic = true )

inline

Definition at line 240 of file Model.h.

                                                     {
        flagNPquadratic = NPquadratic;
    }

◆ setModelSUSY()

void Model::setModelSUSY ( )

inline

Definition at line 178 of file Model.h.

                       {
        flagSUSYmodel = true;
    }

◆ setModelTHDM()

void Model::setModelTHDM ( )

inline

Definition at line 194 of file Model.h.

                       {
        flagTHDMmodel = true;
    }

◆ setModelTHDMW()

void Model::setModelTHDMW ( )

inline

Definition at line 210 of file Model.h.

                        {
        flagTHDMWmodel = true;
    }

◆ setParameter()

virtual void Model::setParameter	(	const std::string	name,
		const double &	value
	)

protectedpure virtual

A method to set the value of a parameter of the model.

Parameters

[in]	name	name of a model parameter
[in]	value	the value to be assigned to the parameter specified by name

Implemented in NPDF2, HiggsChiral, HiggsKigen, NPd6SILH, NPEpsilons, NPEpsilons_pureNP, NPHiggs, NPSMEFT6dtopquark, NPSMEFTd6, NPSMEFTd6General, NPSMEFTd6U2, NPSMEFTd6U2qU1le, NPSMEFTd6U3, NPSTU, NPSTUVWXY, NPSTUZbbbarLR, NPZbbbar, NPZbbbarLinearized, SigmaBR, QCD, StandardModel, SUSY, THDM, CMFV, FlavourWilsonCoefficient, FlavourWilsonCoefficient_DF2, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, pMSSM, SUSYMassInsertion, and THDMW.

◆ setSliced()

void Model::setSliced ( bool Sliced )

inline

Definition at line 245 of file Model.h.

    {
        isSliced = Sliced;
    }

◆ setUpdateError()

void Model::setUpdateError ( bool UpdateError )

inline

A set method to fix the update status as success or failure.

Parameters

[in] UpdateError true if update is not successful

Definition at line 163 of file Model.h.

    {
        this->UpdateError = UpdateError;
    }

◆ Update()

virtual bool Model::Update ( const std::map< std::string, double > & DPars )

pure virtual

The update method for the model.

This method updates all the model parameters with given DPars.

Parameters

[in] DPars a map of the parameters that are being updated in the Monte Carlo run (including parameters that are varied and those that are held constant)

Returns: a boolean that is true if the execution is successful

Implemented in FlavourWilsonCoefficient, LoopMediators, RealWeakEFTCC, RealWeakEFTLFV, GeneralSUSY, GeorgiMachacek, LeftRightSymmetricModel, MFV, NPbase, pMSSM, QCD, StandardModel, SUSY, SUSYMassInsertion, THDM, and THDMW.

Member Data Documentation

◆ flagFWCDF2model

bool Model::flagFWCDF2model = false

private

A flag identifying the model as a FlavourWilsonCoefficient_DF2 model.

Definition at line 288 of file Model.h.

◆ flagGMmodel

bool Model::flagGMmodel = false

private

A flag identifying the model as a GeorgiMachacek model.

Definition at line 292 of file Model.h.

◆ flagGTHDMmodel

bool Model::flagGTHDMmodel = false

private

A flag identifying the model as a GeneralTHDM model.

Definition at line 290 of file Model.h.

◆ flagLinearized

bool Model::flagLinearized = false

private

A flag to identify models where the NP contribution to Higgs observables is linearized.

Definition at line 293 of file Model.h.

◆ flagNPquadratic

bool Model::flagNPquadratic = false

private

Definition at line 294 of file Model.h.

◆ flagSUSYmodel

bool Model::flagSUSYmodel = false

private

A flag identifying the model as a SUSY model.

Definition at line 287 of file Model.h.

◆ flagTHDMmodel

bool Model::flagTHDMmodel = false

private

A flag identifying the model as a THDM model.

Definition at line 289 of file Model.h.

◆ flagTHDMWmodel

bool Model::flagTHDMWmodel = false

private

A flag identifying the model as a THDMW model.

Definition at line 291 of file Model.h.

◆ isSliced

bool Model::isSliced = false

protected

A boolean set to true if the current istance is a slice of an extended object.

Definition at line 282 of file Model.h.

◆ missingModelParameters

std::vector<std::string> Model::missingModelParameters

private

Definition at line 296 of file Model.h.

◆ missingModelParametersCount

unsigned int Model::missingModelParametersCount = 0

private

Definition at line 295 of file Model.h.

◆ ModelInitialized

bool Model::ModelInitialized = false

private

A boolean set to true if the model is successfully initialized.

Definition at line 286 of file Model.h.

◆ ModelParamMap

std::map< std::string, std::reference_wrapper<const double> > Model::ModelParamMap

mutableprotected

Definition at line 280 of file Model.h.

◆ name

std::string Model::name

private

The name of the model.

Definition at line 285 of file Model.h.

◆ UpdateError

bool Model::UpdateError = false

protected

A boolean set to false if update is successful.

Definition at line 272 of file Model.h.

The documentation for this class was generated from the following file:

Model.h

Detailed Description

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Constructor & Destructor Documentation

◆ Model()

◆ ~Model()

Member Function Documentation

◆ addMissingModelParameter()

◆ CheckFlags()

◆ CheckParameters()

◆ getmissingModelParameters()

◆ getMissingModelParametersCount()

◆ getModelName()

◆ getModelParam()

◆ Init()

◆ isModelFWC_DF2()

◆ isModelGeneralTHDM()

◆ isModelGeorgiMachacek()

◆ IsModelInitialized()

◆ isModelLinearized()

◆ isModelNPquadratic()

◆ isModelParam()

◆ isModelSUSY()

◆ isModelTHDM()

◆ isModelTHDMW()

◆ IsUpdateError()

◆ PostUpdate()

◆ PreUpdate()

◆ raiseMissingModelParameterCount()

◆ setFlag()

◆ setFlagStr()

◆ setModelFWC_DF2()

◆ setModelGeneralTHDM()

◆ setModelGeorgiMachacek()

◆ setModelInitialized()

◆ setModelLinearized()

◆ setModelName()

◆ setModelNPquadratic()

◆ setModelSUSY()

◆ setModelTHDM()

◆ setModelTHDMW()

◆ setParameter()

◆ setSliced()

◆ setUpdateError()

◆ Update()

Member Data Documentation

◆ flagFWCDF2model

◆ flagGMmodel

◆ flagGTHDMmodel

◆ flagLinearized

◆ flagNPquadratic

◆ flagSUSYmodel

◆ flagTHDMmodel

◆ flagTHDMWmodel

◆ isSliced

◆ missingModelParameters

◆ missingModelParametersCount

◆ ModelInitialized

◆ ModelParamMap

◆ name

◆ UpdateError
