GammaPrime Class Reference

A class for the binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\). More...

#include <MVllObservables.h>

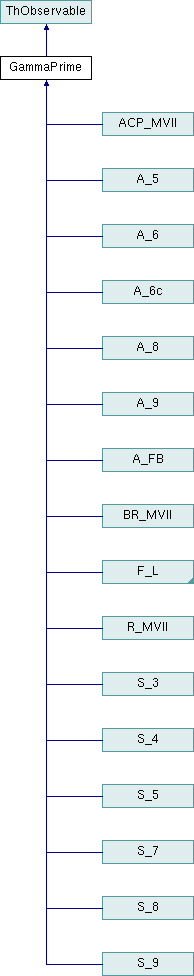

Inheritance diagram for GammaPrime:

Detailed Description

A class for the binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\).

Author

HEPfit Collaboration

Copyright

GNU General Public License

This class is used to compute the binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\) in terms of the binned CP averaged helicity coefficients \(<\Sigma_i>\), computed in the MVll class:

\[ <\Gamma'>=- \frac {1}{4} (<(3\Sigma_{1c} - \Sigma_{2c}) + 2(3\Sigma_{1s} - \Sigma_{2s})>)\,. \]

Definition at line 307 of file MVllObservables.h.

Public Member Functions
double	computeGammaPrime (double qmin, double qmax, QCD::lepton lep)
	A method to compute the binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\) in a generic bin. More...
double	computeThValue ()
	The binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\). More...
	GammaPrime (const StandardModel &SM_i, QCD::meson meson_i, QCD::meson vector_i, QCD::lepton lep_i)
	Constructor. More...
Public Member Functions inherited from ThObservable
double	getBinMax ()
	A get method to get the maximum value of the bin. More...
double	getBinMin ()
	A get method to get the minimum value of the bin. More...
const StandardModel &	getModel ()
	A get method to get the model. More...
const std::vector< std::string >	getParametersForObservable ()
	A get method to get the parameters for the specific observable. More...
void	setBinMax (double max)
	A set method to set the maximum value of the bin. More...
void	setBinMin (double min)
	A set method to set the minimum value of the bin. More...
void	setParametersForObservable (std::vector< std::string > parametersForObservable_i)
	A set method to get the parameters for the specific observable. More...
	ThObservable (const StandardModel &SM_i)
	Constructor. More...
	ThObservable (const ThObservable &orig)
	The copy constructor. More...
virtual	~ThObservable ()
	The default destructor. More...

Private Attributes
QCD::lepton	lep
QCD::meson	meson
QCD::meson	vectorM

Additional Inherited Members
Protected Attributes inherited from ThObservable
double	max
	the bin maximum. More...
double	min
	The bin minimum. More...
std::vector< std::string >	parametersForObservable
	a vector of parameter namesfor the specific observable More...
const StandardModel &	SM
	A reference to an object of StandardMode class. More...

Constructor & Destructor Documentation

GammaPrime()

GammaPrime::GammaPrime	(	const StandardModel &	SM_i,
		QCD::meson	meson_i,
		QCD::meson	vector_i,
		QCD::lepton	lep_i
	)

Constructor.

Parameters

[in]	SM_i	a reference to an object of type StandardModel
[in]	meson_i	initial meson of the decay
[in]	vector_i	final vector meson of the decay
[in]	lep_i	final leptons of the decay

Definition at line 163 of file MVllObservables.cpp.

: ThObservable(SM_i)
{
    lep = lep_i;
    meson = meson_i;
    vectorM = vector_i;

    setParametersForObservable(SM.getFlavour().getMVll(meson, vectorM, lep).initializeMVllParameters());
}

Member Function Documentation

computeGammaPrime()

double GammaPrime::computeGammaPrime	(	double	qmin,
		double	qmax,
		QCD::lepton	lep
	)

A method to compute the binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\) in a generic bin.

Parameters

[in]	qmin	minimal value of the bin
[in]	qmax	maximal value of the bin
[in]	lep	final leptons of the decay

Returns

\(<\Gamma'>_{[qmin,qmax]}\)

Definition at line 173 of file MVllObservables.cpp.

{
    double q_min = qmin;
    double q_max = qmax;
    QCD::lepton lep_i = lep;

    return ((3.*SM.getFlavour().getMVll(meson, vectorM, lep_i).integrateSigma(0,q_min,q_max) - SM.getFlavour().getMVll(meson, vectorM, lep_i).integrateSigma(2,q_min,q_max)) + 2.*(3.*SM.getFlavour().getMVll(meson, vectorM, lep_i).integrateSigma(1,q_min,q_max) - SM.getFlavour().getMVll(meson, vectorM, lep_i).integrateSigma(3,q_min,q_max)))/4.;
}

computeThValue()

double GammaPrime::computeThValue ( )

virtual

The binned observable \(<\Gamma'>\) in \(M \to V l^+l^-\).

Returns

\(<\Gamma'>\)

Implements ThObservable.

Reimplemented in A_FB, BR_MVll, F_L, R_MVll, RL_MVll, RT_MVll, ACP_MVll, S_1c, S_1s, S_2c, S_2s, S_3, S_4, S_5, S_6c, S_7, S_8, S_9, A_5, A_6, A_6c, A_8, and A_9.

Definition at line 182 of file MVllObservables.cpp.

{
    double q_min = getBinMin();
    double q_max = getBinMax();

    return computeGammaPrime(q_min, q_max, lep);
}

Member Data Documentation

lep

QCD::lepton GammaPrime::lep

private

Final leptons type.

Definition at line 335 of file MVllObservables.h.

meson

QCD::meson GammaPrime::meson

private

Initial meson type.

Definition at line 336 of file MVllObservables.h.

vectorM

QCD::meson GammaPrime::vectorM

private

Final vector meson type.

Definition at line 337 of file MVllObservables.h.

---

The documentation for this class was generated from the following files:

• MVllObservables.h
• MVllObservables.cpp
