LEP2ThDiffObservableBin Class Reference

A class for the LEP2 differential observables computed from finite bins. More...

#include <LEP2ThObservable.h>

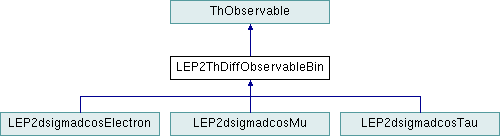

Inheritance diagram for LEP2ThDiffObservableBin:

Detailed Description

A class for the LEP2 differential observables computed from finite bins.

Author

HEPfit Collaboration

Copyright

GNU General Public License

Definition at line 105 of file LEP2ThObservable.h.

Public Member Functions
	LEP2ThDiffObservableBin (const StandardModel &SM_i, const double sqrt_s_i, const double cos_i, const double cosmin_i, const double cosmax_i)
	LEP2ThDiffObservableBin constructor. More...
Public Member Functions inherited from ThObservable
virtual double	computeThValue ()=0
	A member to be overloaded by the respective theory observable. class that calculates the value of the observable. More...
double	getBinMax ()
	A get method to get the maximum value of the bin. More...
double	getBinMin ()
	A get method to get the minimum value of the bin. More...
const StandardModel &	getModel ()
	A get method to get the model. More...
const std::vector< std::string >	getParametersForObservable ()
	A get method to get the parameters for the specific observable. More...
void	setBinMax (double max)
	A set method to set the maximum value of the bin. More...
void	setBinMin (double min)
	A set method to set the minimum value of the bin. More...
void	setParametersForObservable (std::vector< std::string > parametersForObservable_i)
	A set method to get the parameters for the specific observable. More...
	ThObservable (const StandardModel &SM_i)
	Constructor. More...
	ThObservable (const ThObservable &orig)
	The copy constructor. More...
virtual	~ThObservable ()
	The default destructor. More...

Public Attributes
const double	cos
const double	cosmax
const double	cosmin
const LEP2test	myTEST
const double	s
const double	sqrt_s

Additional Inherited Members
Protected Attributes inherited from ThObservable
double	max
	the bin maximum. More...
double	min
	The bin minimum. More...
std::vector< std::string >	parametersForObservable
	a vector of parameter namesfor the specific observable More...
const StandardModel &	SM
	A reference to an object of StandardMode class. More...

Constructor & Destructor Documentation

LEP2ThDiffObservableBin()

LEP2ThDiffObservableBin::LEP2ThDiffObservableBin ( const StandardModel &  SM_i, const double  sqrt_s_i, const double  cos_i, const double  cosmin_i, const double  cosmax_i  )

inline

LEP2ThDiffObservableBin constructor.

Parameters

[in]	SM_i	a reference to an object of type StandardModel
[in]	sqrt_s_i	the CM energy of the e^+ e^- pair
[in]	cos_i	the polar angle of the final state particle wrt e^-
[in]	cosmin_i	the minimum polar angle of the final state particle wrt e^- in the bin
[in]	cosmax_i	the maximum polar angle of the final state particle wrt e^- in the bin

Definition at line 116 of file LEP2ThObservable.h.

            : ThObservable(SM_i),sqrt_s(sqrt_s_i), s(sqrt_s_i*sqrt_s_i), cos(cos_i), cosmin(cosmin_i), cosmax(cosmax_i)
    {
        // SM intrinsic (relative) error. Assumed the same for all energies/angles
        // Same for muon and tau final states but different than for electrons
        setParametersForObservable(make_vector<std::string>() << "errSMint_deeeedcosLEP2"<< "errSMint_deelldcosLEP2");
    }

Member Data Documentation

cos

const double LEP2ThDiffObservableBin::cos

Definition at line 125 of file LEP2ThObservable.h.

cosmax

const double LEP2ThDiffObservableBin::cosmax

Definition at line 125 of file LEP2ThObservable.h.

cosmin

const double LEP2ThDiffObservableBin::cosmin

Definition at line 125 of file LEP2ThObservable.h.

myTEST

const LEP2test LEP2ThDiffObservableBin::myTEST

Definition at line 124 of file LEP2ThObservable.h.

s

const double LEP2ThDiffObservableBin::s

Definition at line 125 of file LEP2ThObservable.h.

sqrt_s

const double LEP2ThDiffObservableBin::sqrt_s

Definition at line 125 of file LEP2ThObservable.h.

---

The documentation for this class was generated from the following file:

• LEP2ThObservable.h
